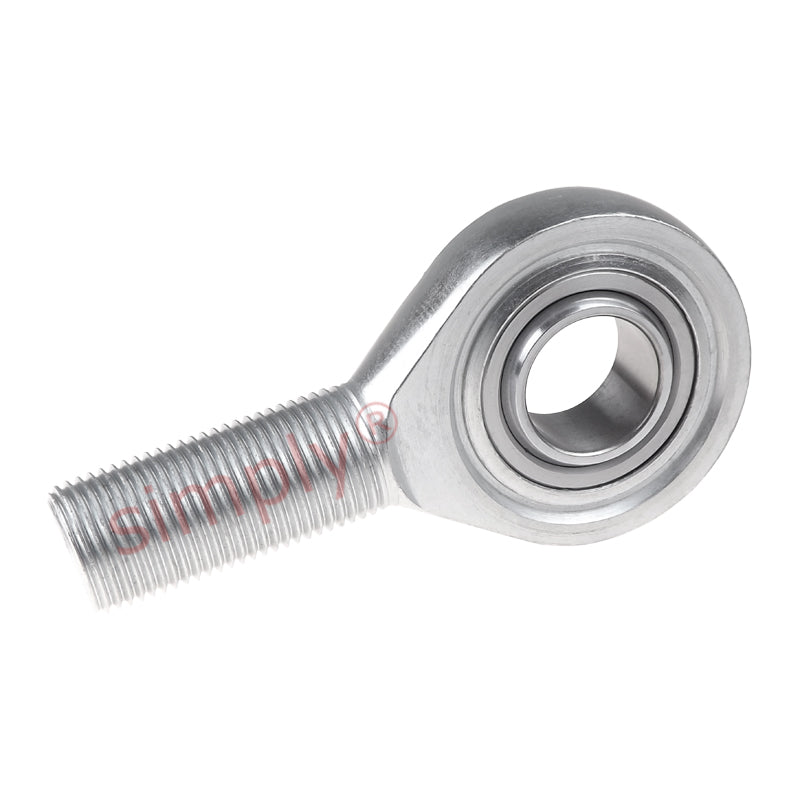

• Budget SAL12E Left Hand Steel Plain Male Rod End M12 Thread
1 1

SKU: SAL12E-EU

Budget SAL12E Left Hand Steel Plain Male Rod End M12 Thread

Budget SAL12E Left Hand Steel Plain Male Rod End M12 Thread
$20.32 ex VAT
$20.32 ex VAT
Sale Sold out

In stock

Price Break
10+ $13.61
19+ $12.85
29+ $12.69
39+ $12.54
49+ $12.39
74+ $12.24
99+ $11.47
199+ $11.32
249+ $11.16
499+ $11.01
999+ $10.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SA..E Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is no dedicated lubrication point provided thus lubrication in the form of re-lubrication from the sides of the ball is required. These are metric sized male rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference.
Application: Suitable for heavy static or alternating loads, shock loads.
Benefits: Re-lubricate-able, cleanable.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M12
Thread Direction:
Left Hand
Technical
d 12mm
d2 max 35mm
G M12
B 10mm
C1 max 8.5mm
h 54mm
Max Misalignment Angle 10 degrees
Dynamic Load 10.8 kN
Static Load 24.5 kN
dk 18mm
l1 min 28mm
l2 max 73mm
l7 min 17mm
r1 min 0.3mm
Weight 0.078g
