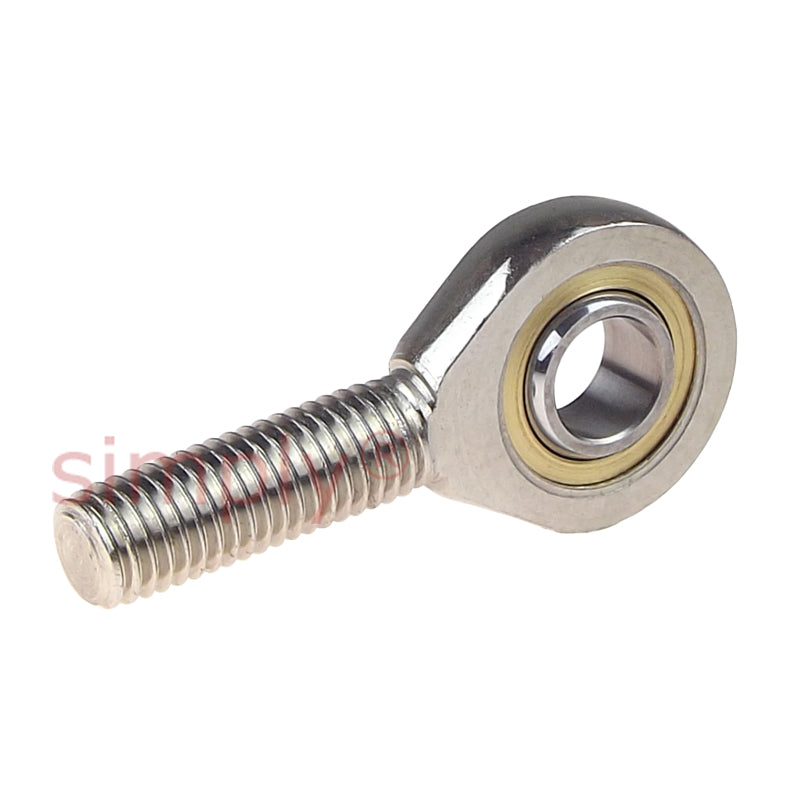

• Codex SAL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
  • Codex
1 2

SKU: SAL17C-CDX

Codex SAL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread

Codex SAL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
$33.59 ex VAT
$33.59 ex VAT
Sale Sold out

Equivalent to: GAL17UK

In stock

Price Break
10+ $22.49
19+ $21.23
29+ $20.98
39+ $20.73
49+ $20.47
74+ $20.22
99+ $18.96
199+ $18.70
249+ $18.45
499+ $18.20
999+ $17.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SA..C Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE sintered bronze these rod end bearings are unsealed. They are manufactured from heat treatable C45V Steel zinc coated and chromatized and PTFE sintered bronze and will operate within -35deg C to +150 deg C, load carrying capacity will be reduced over +80 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings.
Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads.
Benefits: Maintenance free, Steel / PTFE /Bronze
Brand / Quality:
Codex - Good Quality
Thread Size:
M16
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
17mm
Material:
PTFE Sintered Bronze Lined
Technical
d 17mm
d2 max 47mm
G M16
B 14mm
C1 max 11.5mm
h1 69mm
Max misalignment angle 10 degrees
Dynamic load 22.4 kN
Static load 42.5 kN
dk 25mm
l1 min 36mm
l2 max 94mm
l7 min 22mm
r1 min 0.3mm
Weight 0.19 kg
