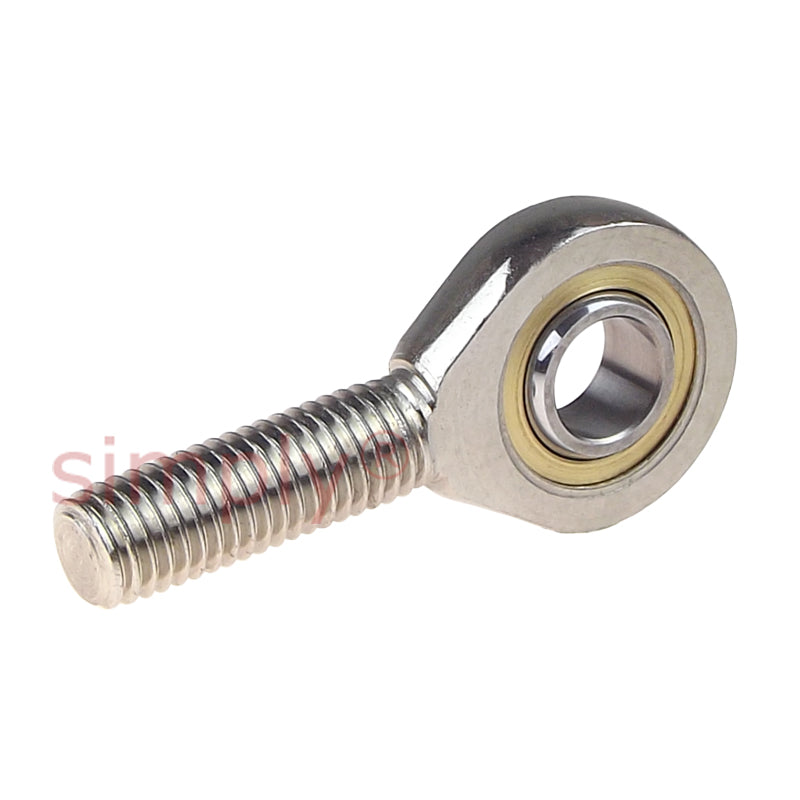

• Codex SAL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread
  • Codex
1 2

SKU: SAL20C-CDX

Codex SAL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread

Codex SAL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread
$36.94 ex VAT
$36.94 ex VAT
Sale Sold out

Equivalent to: GAL20UK

In stock

Price Break
10+ $24.75
19+ $23.36
29+ $23.08
39+ $22.80
49+ $22.52
74+ $22.24
99+ $20.85
199+ $20.58
249+ $20.30
499+ $20.02
999+ $19.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Material:
PTFE Sintered Bronze Lined
Technical
d 20mm
d2 max 54mm
G M20x1.5
B 16mm
C1 max 13.5mm
h1 78mm
Max misalignment angle 9 degrees
Dynamic load 31.5 kN
Static load 51 kN
dk 29mm
l1 min 43mm
l2 max 107mm
l7 min 24mm
r1 min 0.3mm
Weight 0.32 kg
