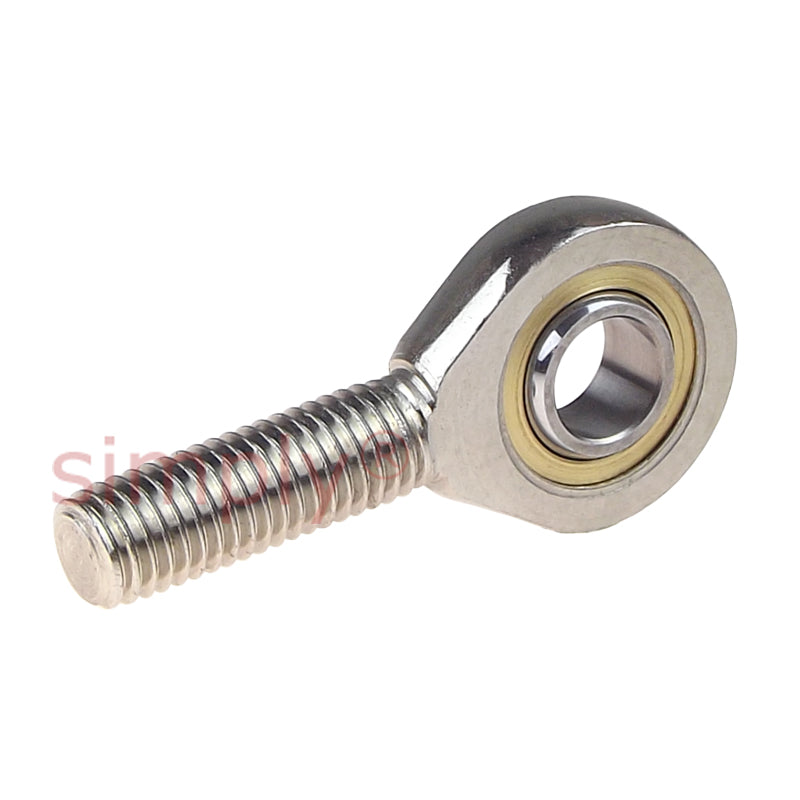

• Codex SAL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M8 Thread
  • Codex
1 2

SKU: SAL8C-CDX

Codex SAL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M8 Thread

Codex SAL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M8 Thread
$19.12 ex VAT
$19.12 ex VAT
Sale Sold out

Equivalent to: GAL8UK

In stock

Price Break
10+ $12.81
19+ $12.09
29+ $11.95
39+ $11.80
49+ $11.66
74+ $11.51
99+ $10.79
199+ $10.65
249+ $10.51
499+ $10.36
999+ $10.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M8
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
8mm
Material:
PTFE Sintered Bronze Lined
Technical
d 8mm
d2 max 25mm
G M8
B 8mm
C1 max 6.5mm
h1 42mm
Max misalignment angle 15 degrees
Dynamic load 5.85 kN
Static load 12.9 kN
dk 13mm
l1 min 21mm
l2 max 56mm
l7 min 11mm
r1 min 0.3mm
Weight 0.03 kg
