SKU: SALA50TXE-2LS-SKF

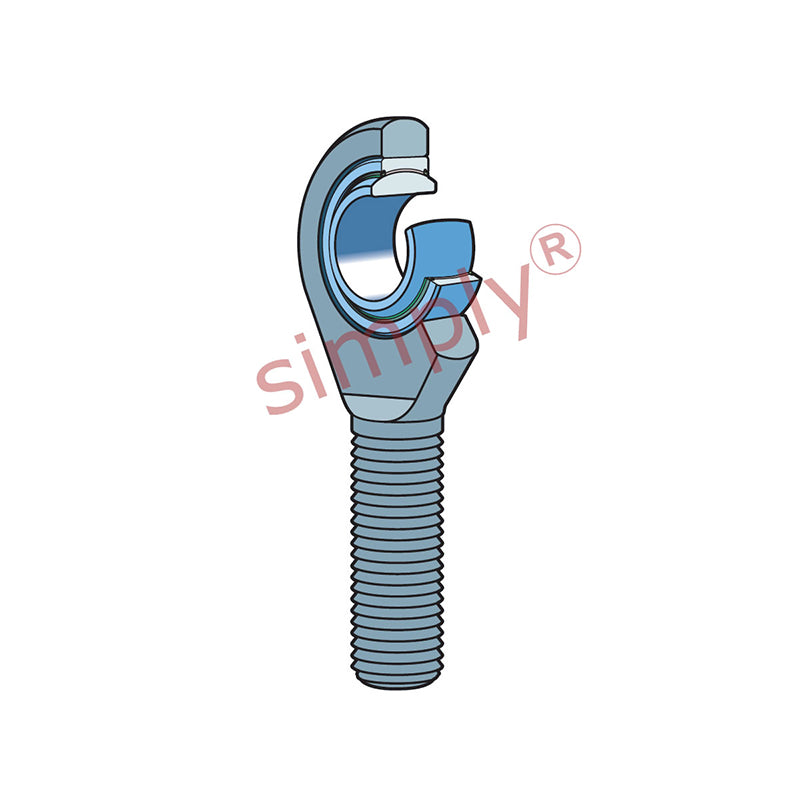

SKF SALA50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M45x3 Thread
SKF SALA50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M45x3 Thread
Regular price
$513.61
ex VAT
Regular price
Sale price
$513.61
ex VAT
In stock
Price Break
10+
$344.03
19+
$324.70
29+
$320.84
39+
$316.97
49+
$313.10
74+
$309.24
99+
$289.91
199+
$286.05
249+
$282.18
499+
$278.32
999+
$270.58
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 50mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 50mm |
|---|---|
| d2 max | 114mm |
| G | M45x3 |
| B | 35mm |
| C1 max | 31mm |
| h | 185mm |
| a | 6deg |
| Dynamic load C | 440 kN |
| Static load Co | 245 kN |
| Weight | 3.3 kg |
| dk | 66mm |
| l1 min | 104mm |
| l2 max | 244mm |
| l7 min | 58mm |
| r1 min | 0.6mm |
