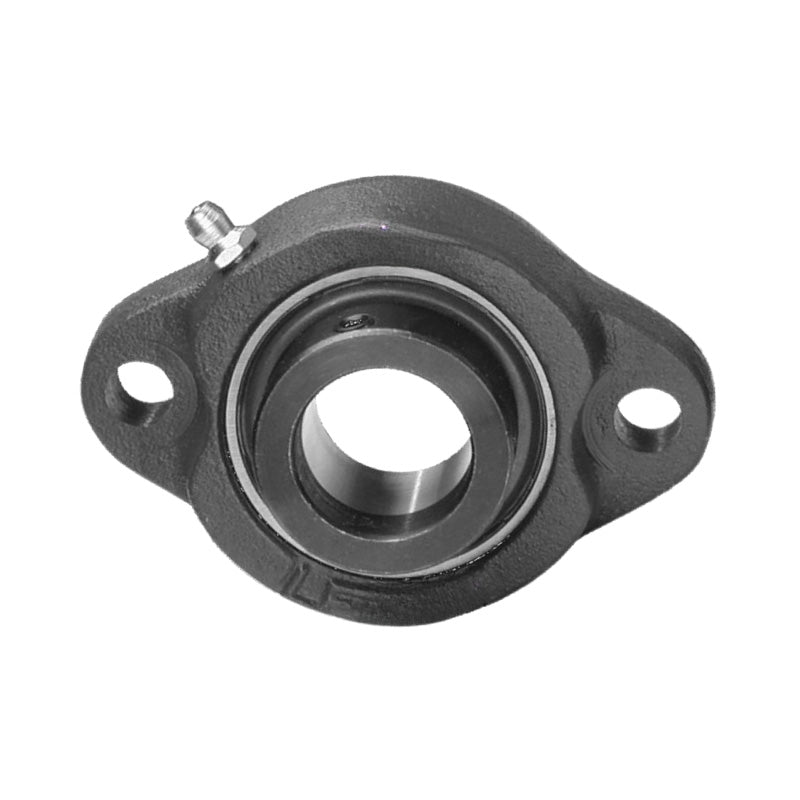

• SALF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Eccentric Collar Insert
1 1

SKU: SALF206-20

SALF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Eccentric Collar Insert

SALF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Eccentric Collar Insert
$29.79 ex VAT
$29.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.95
4+ $18.83
9+ $18.61
19+ $18.38
49+ $18.16
99+ $17.93
499+ $16.81
999+ $16.59
1999+ $16.36
2999+ $16.14
4999+ $15.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SALF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SALF
Bolt Hole Centres:
90.5mm
Technical
d 1-1/4 inch
a 113mm
e 90.5mm
b 76mm
i 12mm
s 12mm
g 12mm
l 22.5mm
Bolt M10
Z 38.7mm
B 35.7mm
n 9mm
Weight 0.7 kg
Dynamic load 1520 kgf
Static load 1020 kgf
