SKU: SALKAC10M-CDX

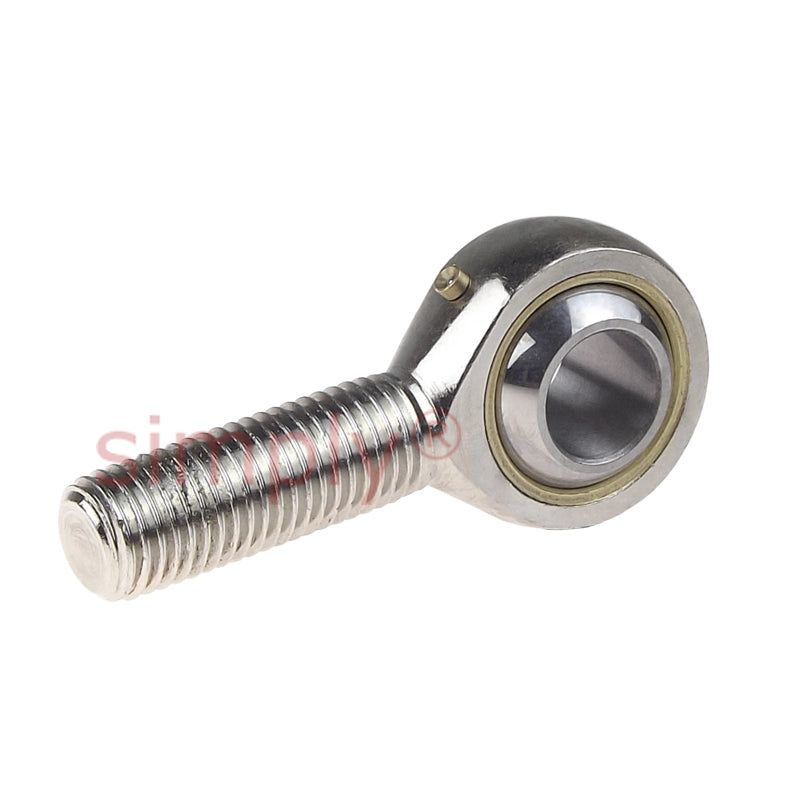

Codex SALKAC10M Left Hand Steel / Bronze Lined Plain Male Rod End M10 Thread
- Regular price
- $17.87 ex VAT
- Sale price
- $17.87
- Regular price
-
In stock
Quantity Price Breaks
10
$15.90
19
$15.01
29
$14.83
39
$14.65
49
$14.47
74
$14.30
99
$13.40
199
$13.22
249
$13.05
499
$12.87
999
$12.51
SKU:
SALKAC10M-CDX
Codex SALKAC10M Left Hand Steel / Bronze Lined Plain Male Rod End M10 Thread
- Regular price
- $17.87 ex VAT
- Sale price
- $17.87
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |

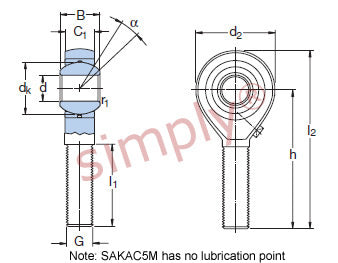

Technical
| d | = | 10mm |
| d2 max | = | 29mm |
| G | = | M10 |
| B | = | 14mm |
| C1 max | = | 10.5mm |
| h1 | = | 48mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 10 kN |
| Static load | = | 10.8 kN |
| dk | = | 19mm |
| l1 min | = | 28mm |
| l2 max | = | 64mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.054 kg |
