SKU: SALKAC12M-CDX

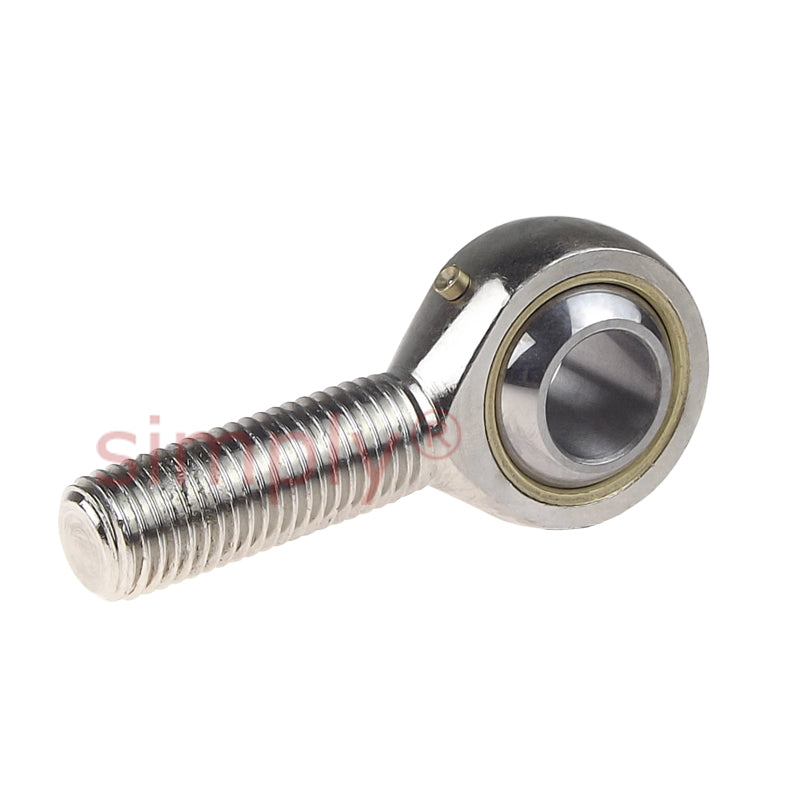

Codex SALKAC12M Left Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
- Regular price
- $20.45 ex VAT
- Sale price
- $20.45
- Regular price
-
In stock
Quantity Price Breaks
10
$18.20
19
$17.18
29
$16.97
39
$16.77
49
$16.56
74
$16.36
99
$15.34
199
$15.13
249
$14.93
499
$14.72
999
$14.32
SKU:
SALKAC12M-CDX
Codex SALKAC12M Left Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
- Regular price
- $20.45 ex VAT
- Sale price
- $20.45
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 12mm |
| d2 max | = | 33mm |
| G | = | M12 |
| B | = | 16mm |
| C1 max | = | 12mm |
| h1 | = | 54mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 12.2 kN |
| Static load | = | 12.2 kN |
| dk | = | 22.2mm |
| l1 min | = | 32mm |
| l2 max | = | 72mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.085 kg |
