SKU: SALKAC18M-CDX

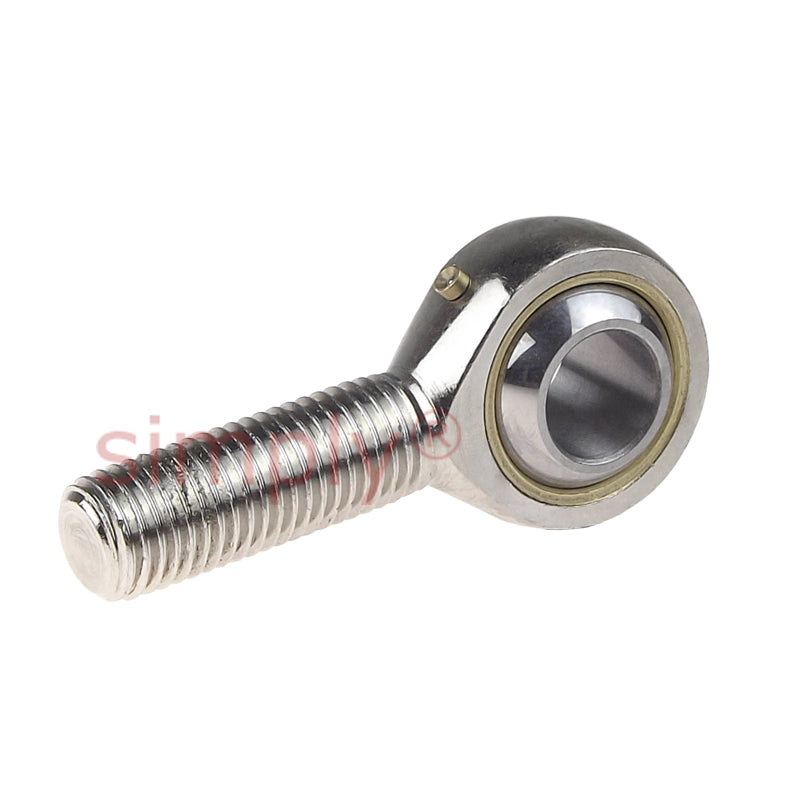

Codex SALKAC18M Left Hand Steel / Bronze Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- $31.21 ex VAT
- Sale price
- $31.21
- Regular price
-
In stock
Quantity Price Breaks
10
$27.78
19
$26.22
29
$25.90
39
$25.59
49
$25.28
74
$24.97
99
$23.41
199
$23.10
249
$22.78
499
$22.47
999
$21.85
SKU:
SALKAC18M-CDX
Codex SALKAC18M Left Hand Steel / Bronze Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- $31.21 ex VAT
- Sale price
- $31.21
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 18mm |
| d2 max | = | 47mm |
| G | = | M18x1.5 |
| B | = | 23mm |
| C1 max | = | 16.5mm |
| h1 | = | 72mm |
| Max misalignment angle | = | 15 degrees |
| Dynamic load | = | 26 kN |
| Static load | = | 29 kN |
| dk | = | 31.7mm |
| l1 min | = | 41mm |
| l2 max | = | 97mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.26 kg |
