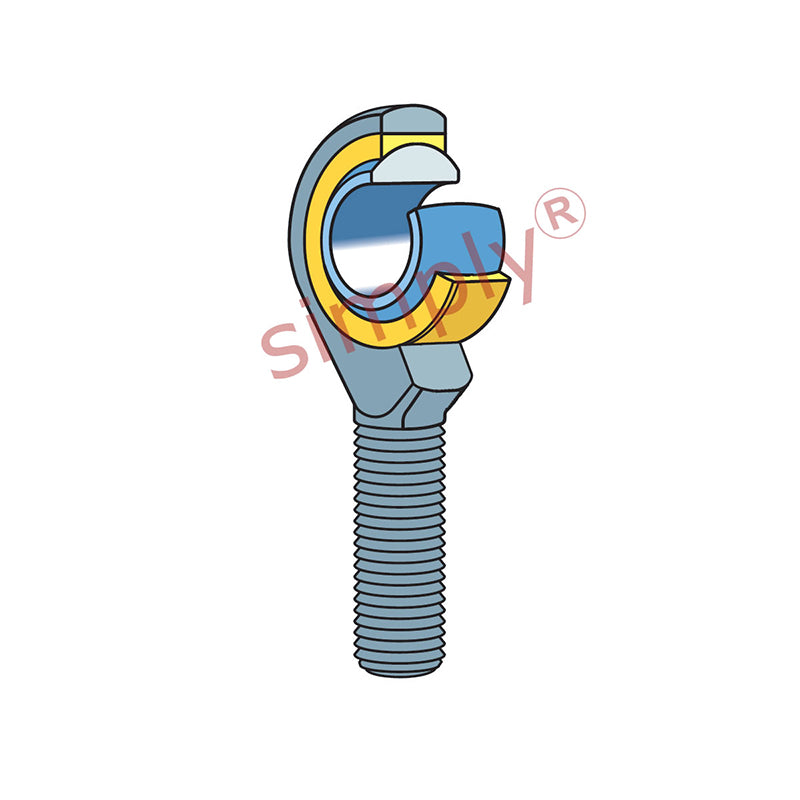

• SKF SALKAC5M Left Hand Steel / Bronze Lined Plain Male Rod End M5 Thread
1 1

SKU: SALKAC5M-SKF

SKF SALKAC5M Left Hand Steel / Bronze Lined Plain Male Rod End M5 Thread

SKF SALKAC5M Left Hand Steel / Bronze Lined Plain Male Rod End M5 Thread
$71.48 ex VAT
$71.48 ex VAT
Sale Sold out

Equivalent to: POS5L MBL-M05

In stock

Price Break
10+ $47.88
19+ $45.19
29+ $44.65
39+ $44.11
49+ $43.58
74+ $43.04
99+ $40.35
199+ $39.81
249+ $39.27
499+ $38.73
999+ $37.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF SAKAC..M Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against bronze these rod end bearings are unsealed and although classed as maintenance free may require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head this will serve to extend it's life cycle. The exception is the SAKAC5M size which has no lubrication point and will need to be lubricated from the sides of the ball. Sizes 5-12 are manufactured from free machining steel 9 SMnPb28K zinc coated and chromatized and bronze, sizes 14-30 are manufactured from heat treatable C35N Steel zinc coated and chromatized and bronze and will operate within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings.
Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur.
Benefits: Maintenance free, Steel / Bronze
Brand / Quality:
SKF - High Quality
Thread Size:
M5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
5mm
Material:
Bronze Lined
Technical
d 5mm
d2 max 19mm
G M5
B 8mm
C1 max 7.5mm
h1 33mm
a 13deg
Dynamic load C 3.25 kN
Static load Co 4.8 kN
Weight 0.013 kg
dk 11.1mm
l1 min 19mm
l2 max 44mm
r1 min 0.3mm
