SKU: SALKAC8M-CDX

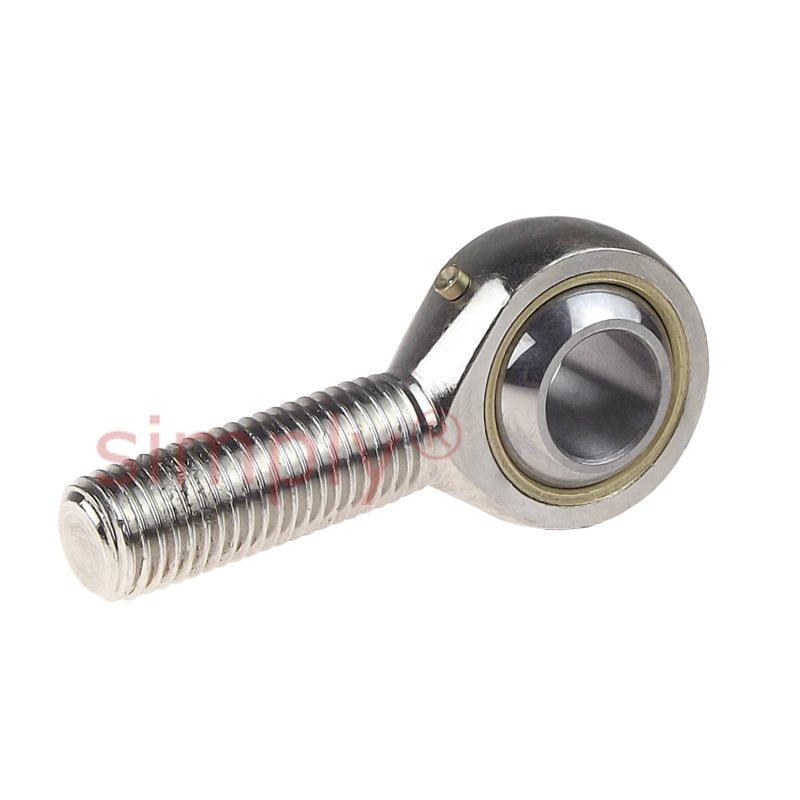

Codex SALKAC8M Left Hand Steel / Bronze Lined Plain Male Rod End M8 Thread

Name: Codex SALKAC8M Left Hand Steel / Bronze Lined Plain Male Rod End M8 Thread
Brand: Codex
SKU: SALKAC8M-CDX
Price: 14.30 USD
Availability: InStock

$14.30 ex VAT

Sale Sold out

Equivalent to: POS8L MBL-M08

In stock

Price Break

10+ $9.58

19+ $9.04

29+ $8.93

39+ $8.82

49+ $8.72

74+ $8.61

99+ $8.07

199+ $7.96

249+ $7.86

499+ $7.75

999+ $7.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings.
Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur.
Benefits: Lower maintenance.

Brand / Quality:: Codex - Good Quality
Thread Size:: M8
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 8mm
Material:: Bronze Lined

Technical

d	8mm
d2 max	25mm
G	M8
B	12mm
C1 max	9mm
h1	42mm
Max misalignment angle	14 degrees
Dynamic load	7.2 kN
Static load	8 kN
dk	15.8mm
l1 min	25mm
l2 max	56mm
r1 min	0.3mm
Weight	0.032 kg
