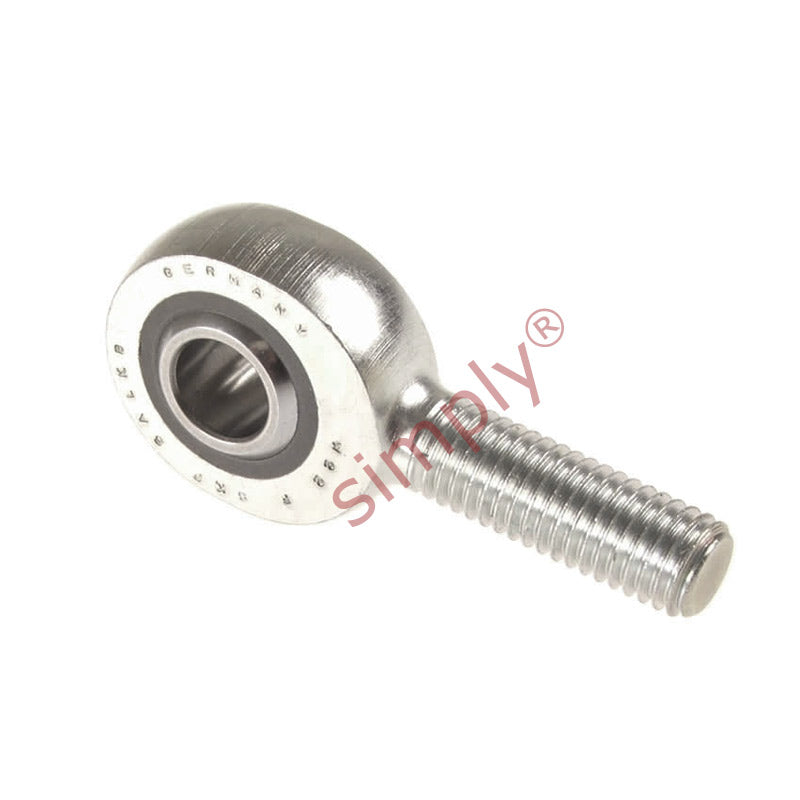

SKF SALKB10F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread

Name: SKF SALKB10F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
Brand: SKF
SKU: SALKB10F-SKF
Price: 51.23 USD
Availability: InStock

$51.23 ex VAT

Sale Sold out

Equivalent to: MSL-M10

In stock

Price Break

10+ $34.31

19+ $32.39

29+ $32.00

39+ $31.62

49+ $31.23

74+ $30.84

99+ $28.92

199+ $28.53

249+ $28.15

499+ $27.76

999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite

Brand / Quality:: SKF - High Quality
Thread Size:: M10
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 10mm
Material:: PTFE FRP Lined

Technical

d	10mm
d2 max	29mm
G	M10
B	14mm
C1 max	10.5mm
h	48mm
a	13deg
Dynamic load C	9.8 kN
Static load Co	12.5 kN
Weight	0.059 kg
dk	19mm
l1 min	28mm
l2 max	64mm
r1 min	0.3mm
