SKU: SALKB14F-SKF

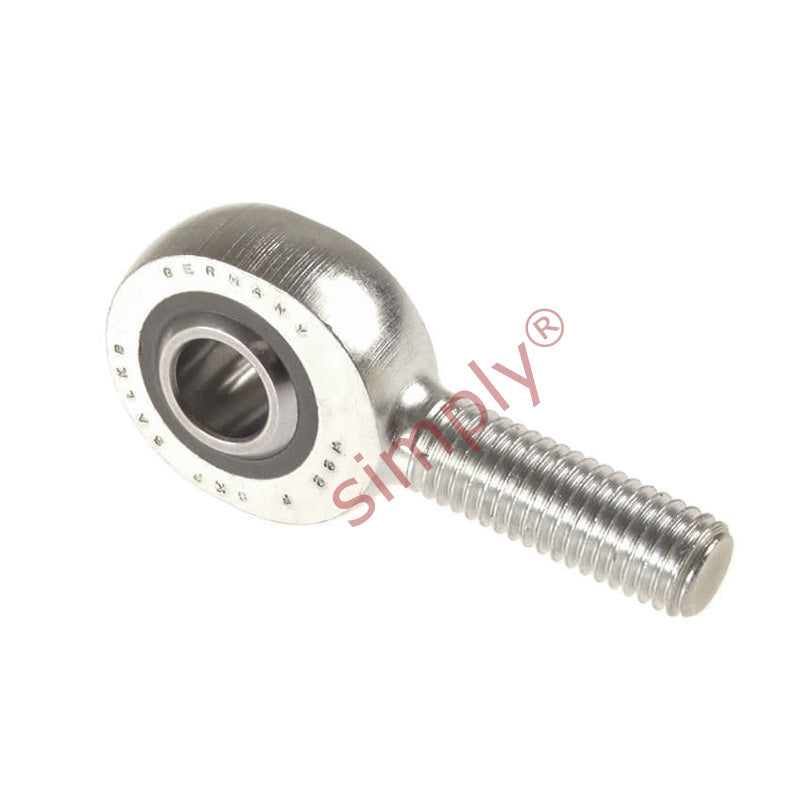

SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread

Name: SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
Brand: SKF
SKU: SALKB14F-SKF
Price: 105.96 USD
Availability: InStock

$105.96 ex VAT

Sale Sold out

Equivalent to: MSL-M14

In stock

Price Break

10+ $70.98

19+ $66.99

29+ $66.20

39+ $65.40

49+ $64.60

74+ $63.80

99+ $59.82

199+ $59.02

249+ $58.22

499+ $57.42

999+ $55.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite

Brand / Quality:: SKF - High Quality
Thread Size:: M14
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 14mm
Material:: PTFE FRP Lined

Technical

d	14mm
d2 max	37mm
G	M14
B	19mm
C1 max	13.5mm
h	60mm
a	16deg
Dynamic load C	17 kN
Static load Co	25.5 kN
Weight	0.13 kg
dk	25.4mm
l1 min	36mm
l2 max	80mm
r1 min	0.3mm
