• SAPFT207-22 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/8 inch Collar Insert
1 1

SKU: SAPFT207-22.TRI

SAPFT207-22 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/8 inch Collar Insert

SAPFT207-22 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/8 inch Collar Insert
$27.11 ex VAT
$27.11 ex VAT
Sale Sold out

Equivalent to: SLFT1-3/8EC

In stock

Price Break
3+ $18.16
4+ $17.14
9+ $16.93
19+ $16.73
49+ $16.52
99+ $16.32
499+ $15.30
999+ $15.10
1999+ $14.89
2999+ $14.69
4999+ $14.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

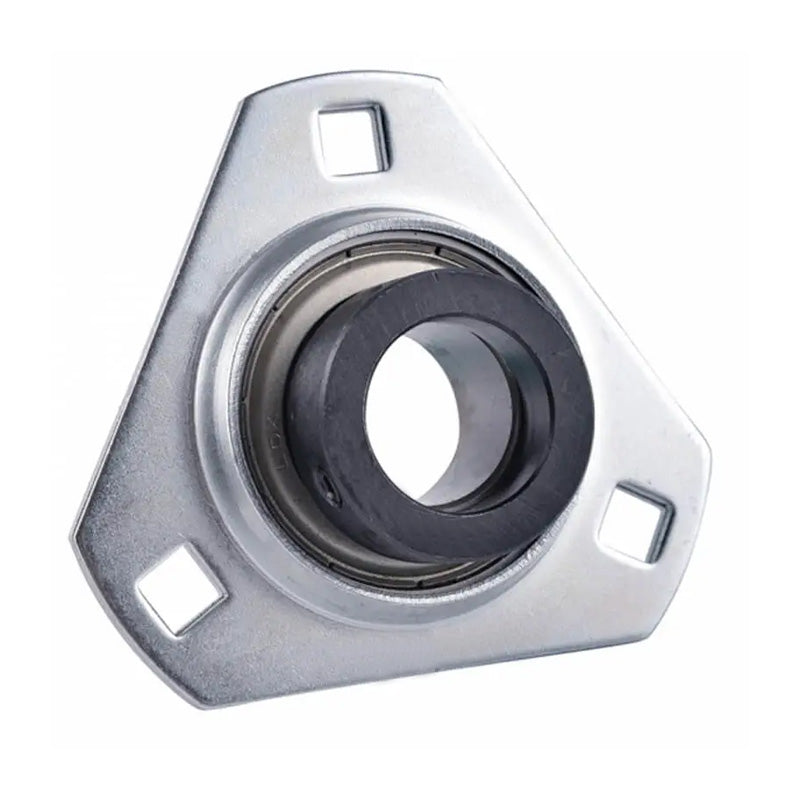

3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
SAPFT
Pitch Circle Diameter:
100mm
Technical
d 1-3/8 inch
a 122mm
e 100mm
w 44.5mm
m 20mm
s 11mm
t 5.2mm
f 81mm
B 38.9mm
n 9.5mm
Bolt M10
Weight 0.82 kg
Dynamic load 2010 N
Static load 1390 N
