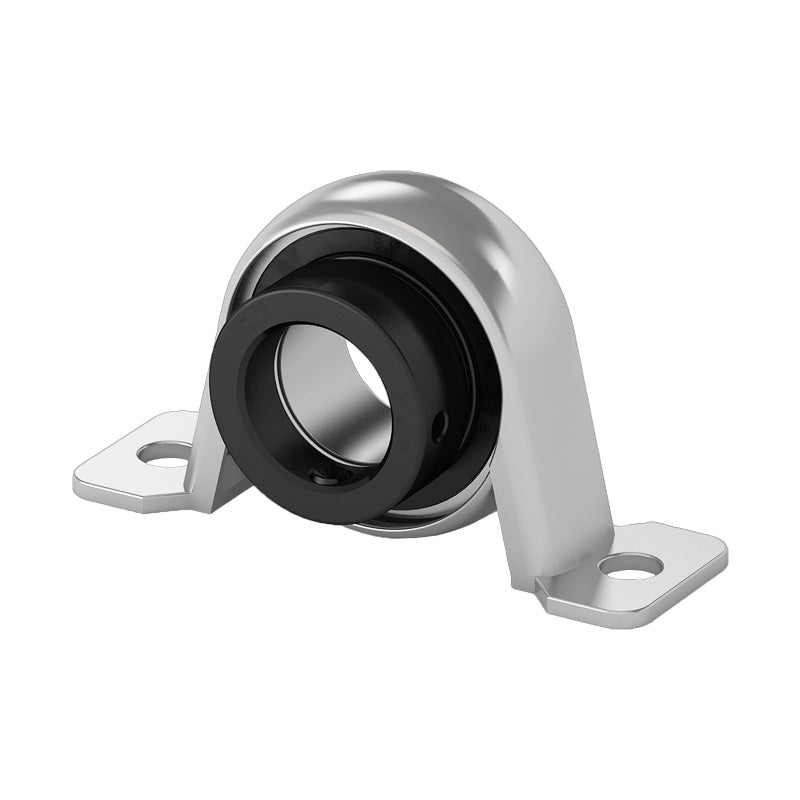

• SAPP202 Pressed Steel 2 Bolt Plummer Block Housing with 15mm Collar Insert
1 1

SKU: SAPP202.HMP

SAPP202 Pressed Steel 2 Bolt Plummer Block Housing with 15mm Collar Insert

SAPP202 Pressed Steel 2 Bolt Plummer Block Housing with 15mm Collar Insert
$12.38 ex VAT
$12.38 ex VAT
Sale Sold out

Equivalent to: LPB15EC

In stock

Price Break
3+ $8.30
4+ $7.83
9+ $7.74
19+ $7.64
49+ $7.55
99+ $7.46
499+ $6.99
999+ $6.90
1999+ $6.81
2999+ $6.71
4999+ $6.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Style:
SAPP
Bolt Hole Centres:
68mm
Technical
d 15mm
h 22.2mm
L 86mm
e 68mm
b 25mm
s 9.5mm
g 3.2mm
w 43.8mm
B1 28.6mm
n 6.5mm
Bolt 5/16 inch
Weight 0.19 kg
Dynamic load 760 N
Static load 450 N
