SKU: SB.201-8G

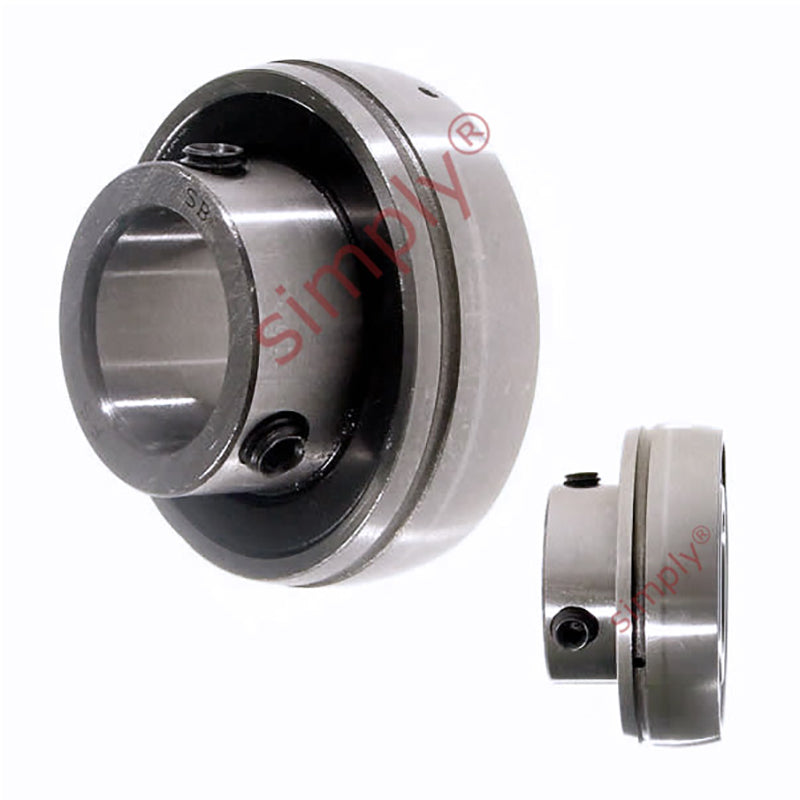

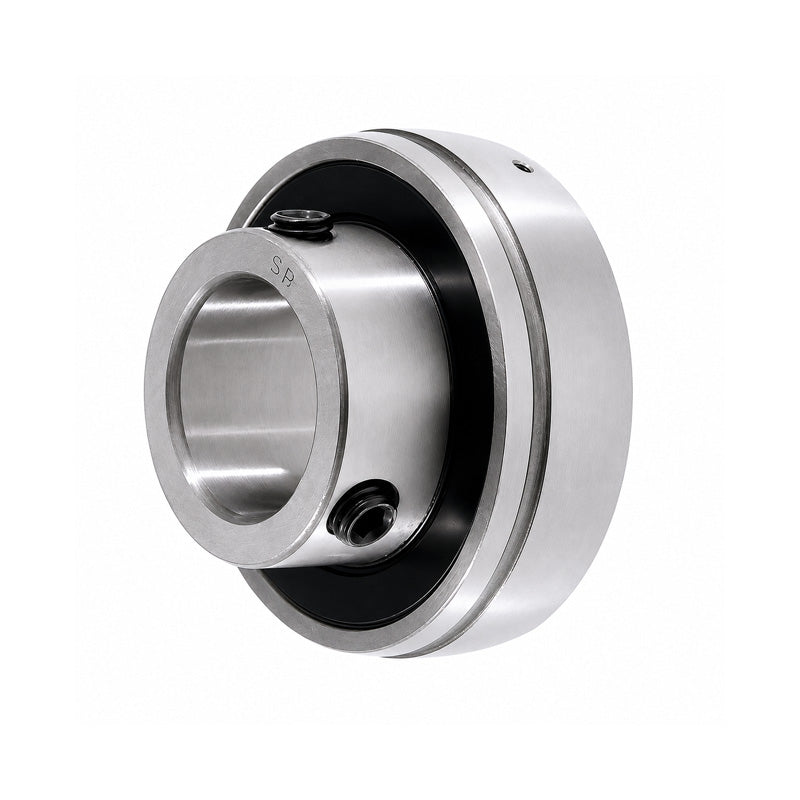

SB201-8G Light Duty Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
SB201-8G Light Duty Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
Regular price
$6.91
ex VAT
Regular price
Sale price
$6.91
ex VAT
In stock
Price Break
3+
$4.63
4+
$4.37
9+
$4.32
19+
$4.27
49+
$4.21
99+
$4.16
499+
$3.90
999+
$3.85
1999+
$3.80
2999+
$3.75
4999+
$3.64
Quantity
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Style:
- SB
Technical
Technical
| d | 1/2 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
