• SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
1 1

SKU: SB.208

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
$17.15 ex VAT
$17.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.49
4+ $10.85
9+ $10.72
19+ $10.59
49+ $10.46
99+ $10.33
499+ $9.68
999+ $9.56
1999+ $9.43
2999+ $9.30
4999+ $9.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

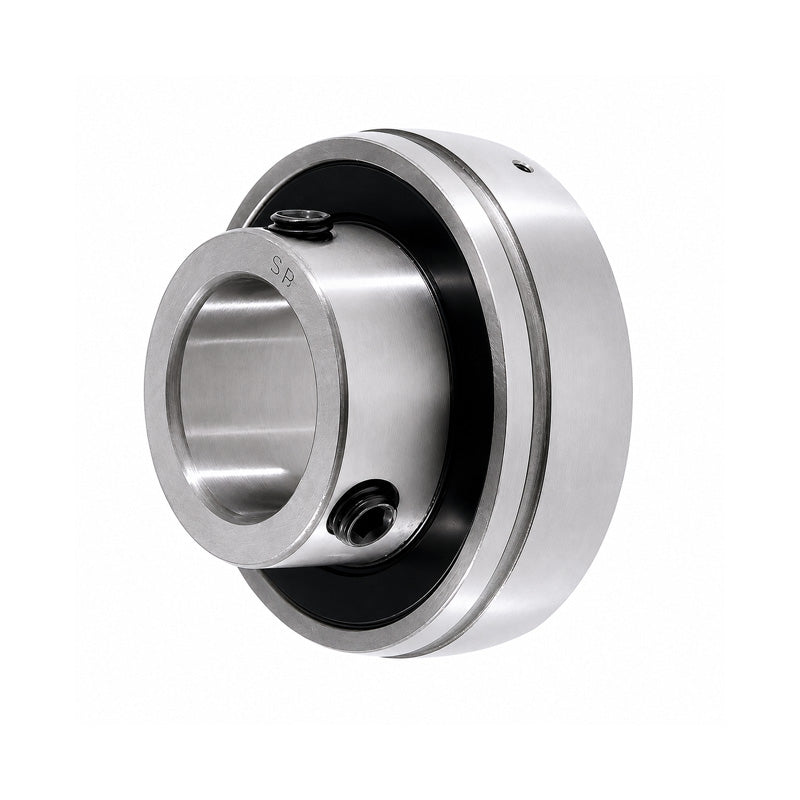

SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Style:
SB
Technical
d 40mm
Be 18mm
D 80mm
Bi 34mm
n 9mm
m 25mm
G 7mm
h 6mm
Grub screw M8X1.0
Weight 0.6 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
