SKU: SB.211-32

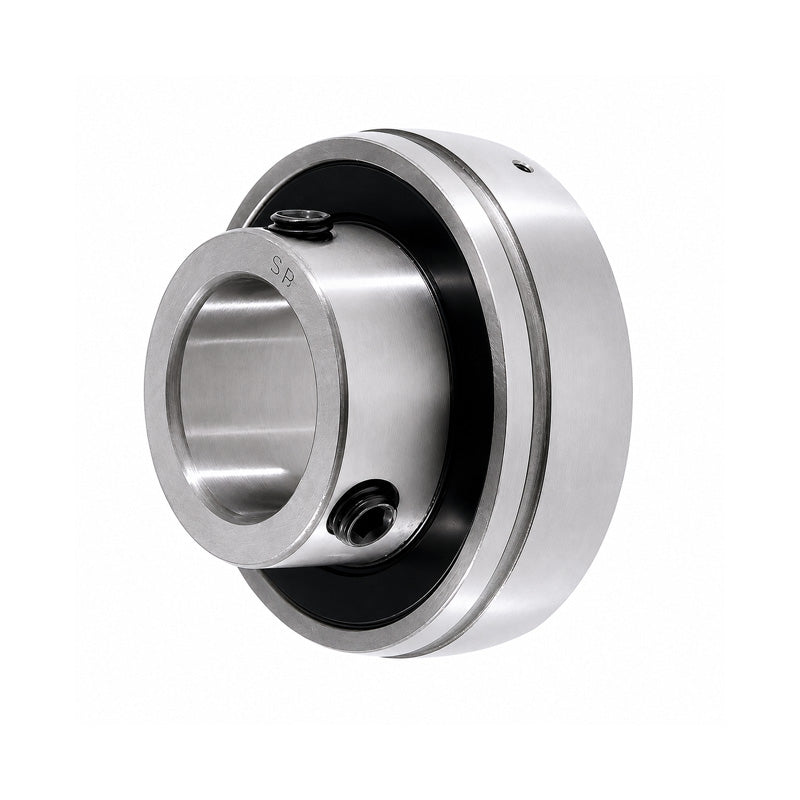

SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Regular price
$25.54
ex VAT
Regular price
Sale price
$25.54
ex VAT
In stock
Price Break
3+
$17.10
4+
$16.14
9+
$15.95
19+
$15.76
49+
$15.57
99+
$15.37
499+
$14.41
999+
$14.22
1999+
$14.03
2999+
$13.84
4999+
$13.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- SB
Technical
Technical
| d | 2 inch |
|---|---|
| Be | 23mm |
| D | 100mm |
| Bi | 45.3mm |
| n | 11.8mm |
| m | 33.5mm |
| G | 9.8mm |
| h | 7.2mm |
| Grub screw | 5/16-24 UNF |
| Weight | 1.1 kg |
| Dynamic load | 4400 kgf |
| Static load | 2960 kgf |
