SKU: SB200CP0

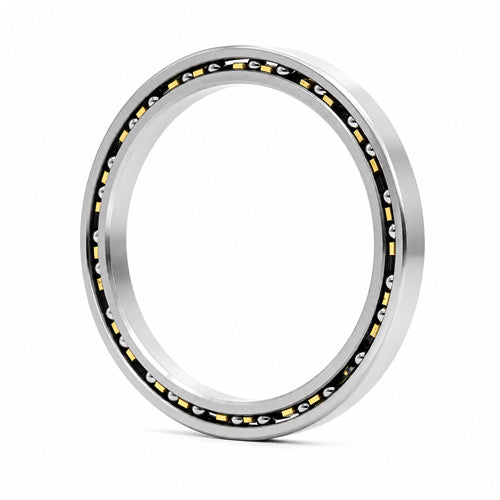

Silverthin SB200CP0 Thin Section Radial Contact Ball Bearing 20x20.625x0.312 inch - Allow 7-10 Days
Silverthin SB200CP0 Thin Section Radial Contact Ball Bearing 20x20.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB200CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 508mm = 20 inch
- Outside Diameter:
- 523.88mm = 20-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 20 inch |
|---|---|
| D | 20.625 inch |
| Width | 0.312 inch |
| L1 | 20.231 inch |
| L2 | 20.393 inch |
| L3 | 20.416 inch |
| Static Radial Load | 36.702 kN |
| Dynamic Radial Load | 8.638 kN |
| Weight | 0.6804 kg |
