SKU: SBFD202

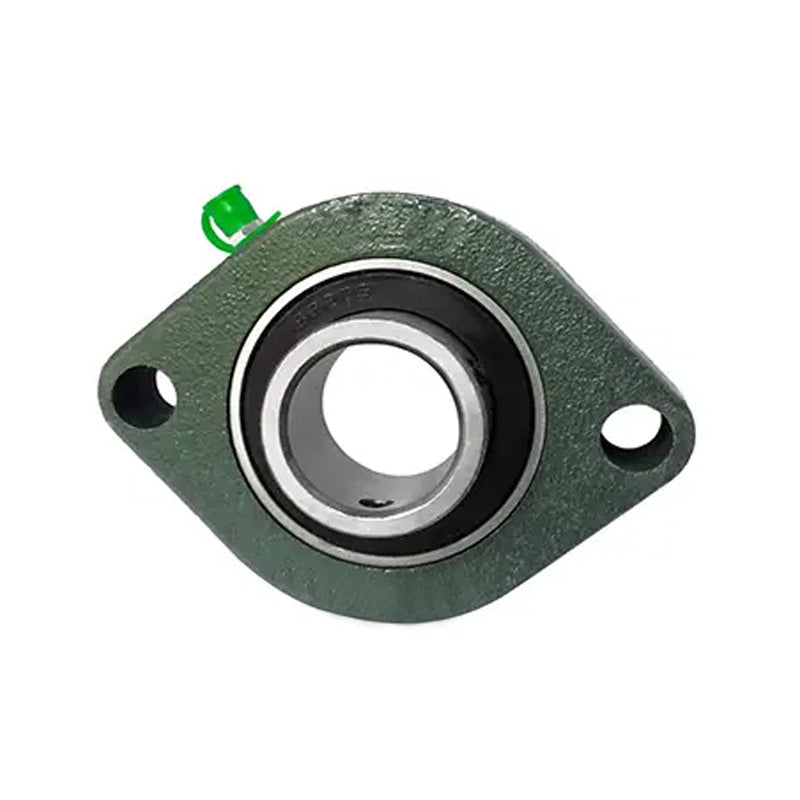

SBFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore
SBFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore
Regular price
$14.66
ex VAT
Regular price
Sale price
$14.66
ex VAT
In stock
Price Break
3+
$9.82
4+
$9.27
9+
$9.16
19+
$9.05
49+
$8.94
99+
$8.83
499+
$8.27
999+
$8.16
1999+
$8.05
2999+
$7.94
4999+
$7.72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- SBFD
- Bolt Hole Centres:
- 63.1mm = 2.484 (2-31/64) inch
Technical
Technical
| d | 15mm |
|---|---|
| a | 3-3/16 inch |
| e | 2-31/64 inch |
| b | 2-21/64 inch |
| i | 21/64 inch |
| s | 9/32 inch |
| l | 19/32 inch |
| z | 61/64 inch |
| B1 | 0.8661 inch |
| n | 0.2362 inch |
| Bolt size | 1/4 inch |
| Bearing no | SB202 |
| Housing no | FD203 |
| Weight | 0.3 kg |
