SKU: SBFD204

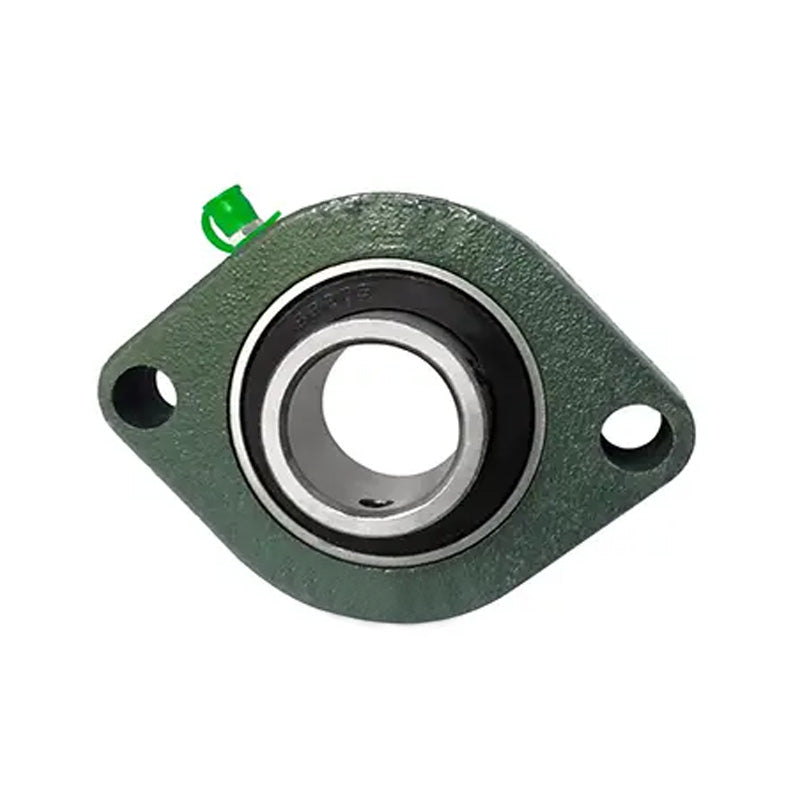

SBFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
SBFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
Regular price
$14.80
ex VAT
Regular price
Sale price
$14.80
ex VAT
In stock
Price Break
3+
$9.91
4+
$9.36
9+
$9.24
19+
$9.13
49+
$9.02
99+
$8.91
499+
$8.35
999+
$8.24
1999+
$8.13
2999+
$8.02
4999+
$7.80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SBFD
- Bolt Hole Centres:
- 71mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 90mm |
| e | 71mm |
| b | 67mm |
| i | 9.5mm |
| s | 10mm |
| l | 17mm |
| z | 27.5mm |
| B1 | 25mm |
| n | 7mm |
| Bolt size | M8 |
| Bearing no | SB204 |
| Housing no | FD204 |
| Weight | 0.4 kg |
