SKU: SBFD206

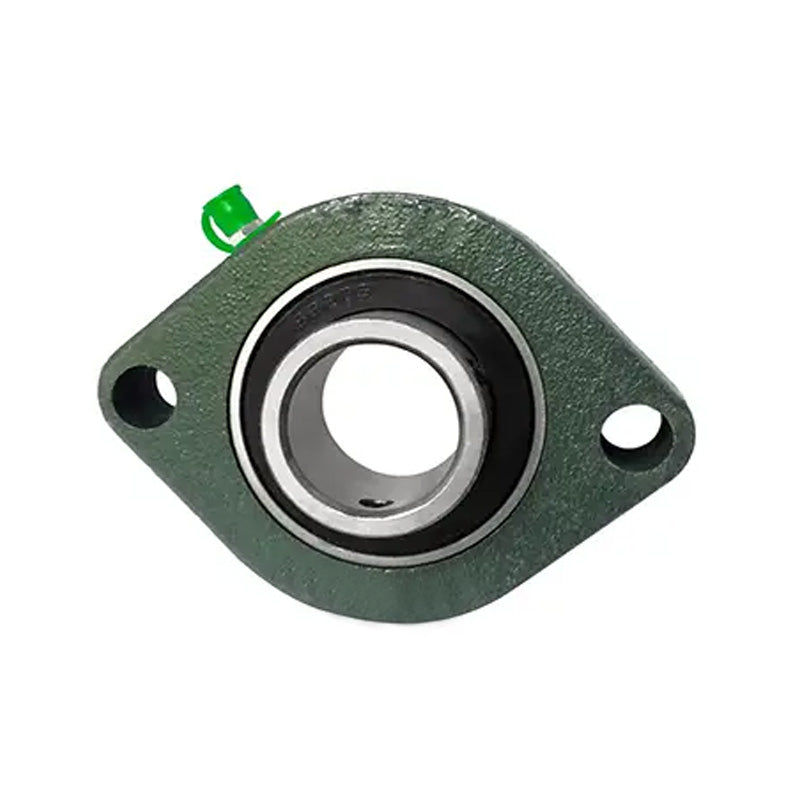

SBFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
SBFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
Regular price
$21.21
ex VAT
Regular price
Sale price
$21.21
ex VAT
In stock
Price Break
3+
$14.20
4+
$13.40
9+
$13.25
19+
$13.09
49+
$12.93
99+
$12.77
499+
$11.97
999+
$11.81
1999+
$11.65
2999+
$11.49
4999+
$11.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- SBFD
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 113mm |
| e | 90mm |
| b | 84mm |
| i | 12mm |
| s | 12mm |
| l | 21mm |
| z | 34mm |
| B1 | 30mm |
| n | 8mm |
| Bolt size | M10 |
| Bearing no | SB206 |
| Housing no | FD206 |
| Weight | 0.8 kg |
