SKU: SBFD207

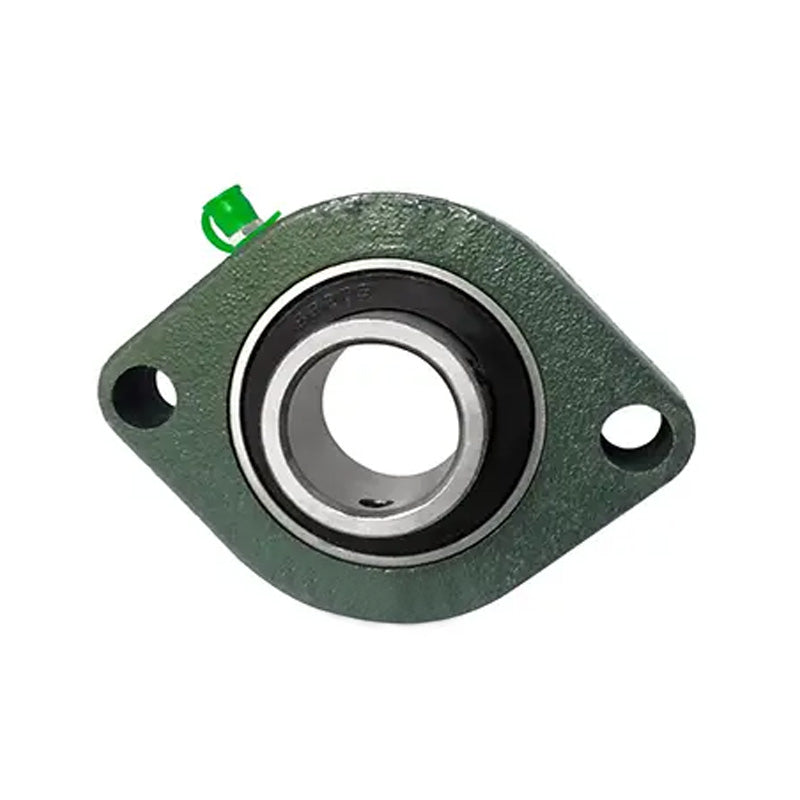

SBFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
SBFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
Regular price
$26.40
ex VAT
Regular price
Sale price
$26.40
ex VAT
In stock
Price Break
3+
$17.68
4+
$16.69
9+
$16.49
19+
$16.29
49+
$16.09
99+
$15.89
499+
$14.90
999+
$14.70
1999+
$14.50
2999+
$14.30
4999+
$13.91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SBFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 125mm |
| e | 100mm |
| b | 94mm |
| i | 12.5mm |
| s | 12mm |
| l | 22mm |
| z | 36mm |
| B1 | 32mm |
| n | 8.5mm |
| Bolt size | M10 |
| Bearing no | SB207 |
| Housing no | FD207 |
| Weight | 0.9 kg |
