• SBFW201-8 Imperial Two Bolt Cast Iron Oval Housing with 1/2 inch Bore
1 1

SKU: SBFW201-8

SBFW201-8 Imperial Two Bolt Cast Iron Oval Housing with 1/2 inch Bore

SBFW201-8 Imperial Two Bolt Cast Iron Oval Housing with 1/2 inch Bore
$15.85 ex VAT
$15.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.62
4+ $10.02
9+ $9.90
19+ $9.78
49+ $9.67
99+ $9.55
499+ $8.95
999+ $8.83
1999+ $8.71
2999+ $8.59
4999+ $8.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

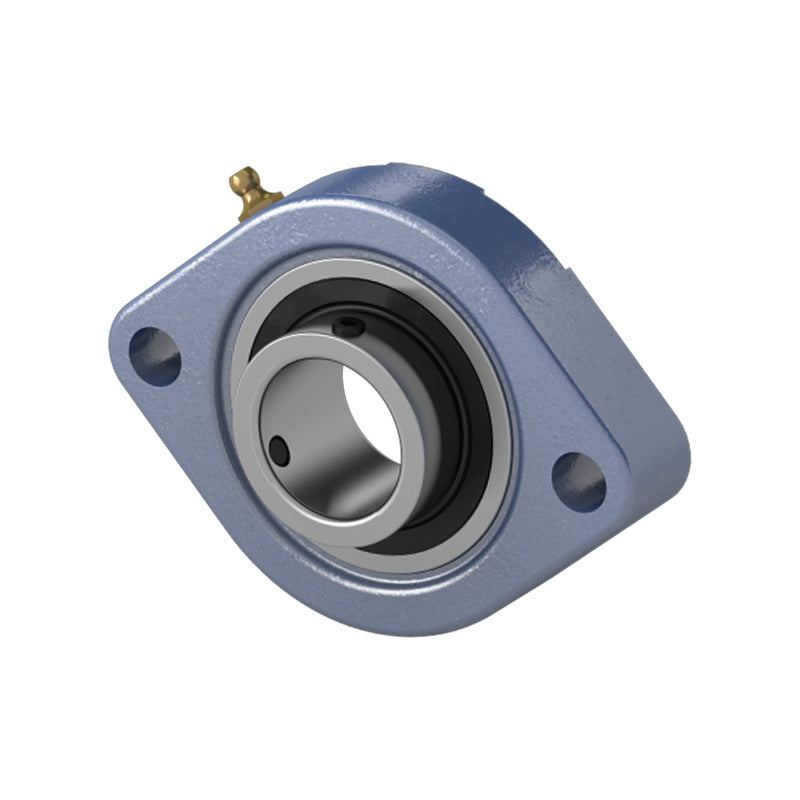

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations.
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Style:
SBFW
Bolt Hole Centres:
63.5mm
Technical
d 1/2 inch
a 81mm
e 63.5mm
b 58.7mm
i 8.5mm
s 7mm
l 15mm
Bolt M6
z 24.5mm
B 22mm
n 6mm
Weight 0.3 kg
Dynamic load 750 kgf
Static load 450 kgf
