• SBFW203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore
1 1

SKU: SBFW203

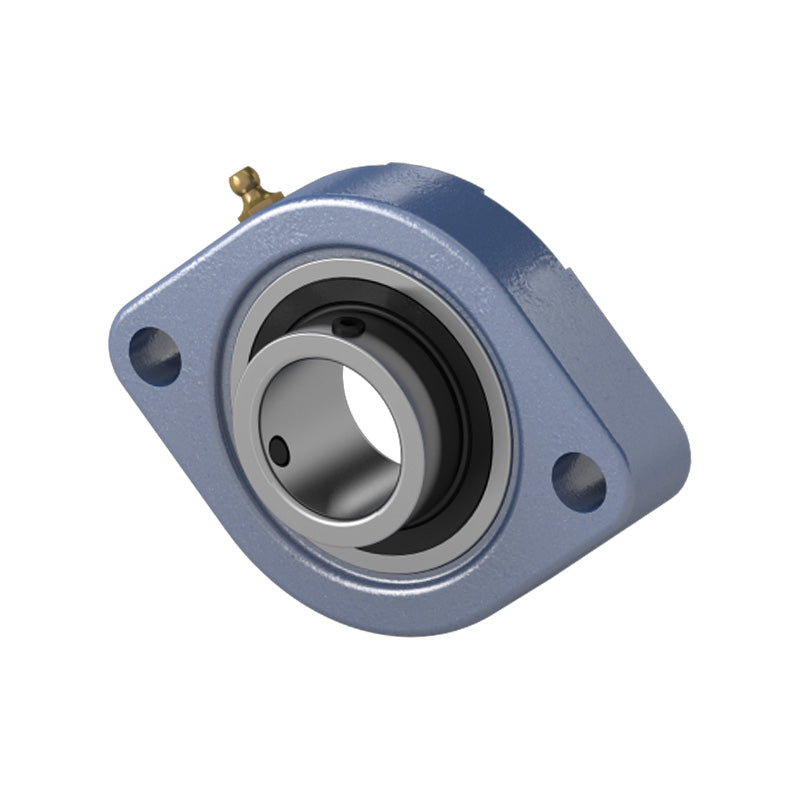

SBFW203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore

SBFW203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore
$15.19 ex VAT
$15.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.17
4+ $9.60
9+ $9.49
19+ $9.37
49+ $9.26
99+ $9.14
499+ $8.57
999+ $8.46
1999+ $8.34
2999+ $8.23
4999+ $8.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations.
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Style:
SBFW
Bolt Hole Centres:
63.5mm
Technical
d 17mm
a 81mm
e 63.5mm
b 58.7mm
i 8.5mm
s 7mm
l 15mm
Bolt M6
z 24.5mm
B 22mm
n 6mm
Weight 0.3 kg
Dynamic load 760 kgf
Static load 450 kgf
