• SBFW205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore
1 1

SKU: SBFW205-14

SBFW205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore

SBFW205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore
$14.93 ex VAT
$14.93 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.00
4+ $9.44
9+ $9.33
19+ $9.21
49+ $9.10
99+ $8.99
499+ $8.43
999+ $8.31
1999+ $8.20
2999+ $8.09
4999+ $7.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

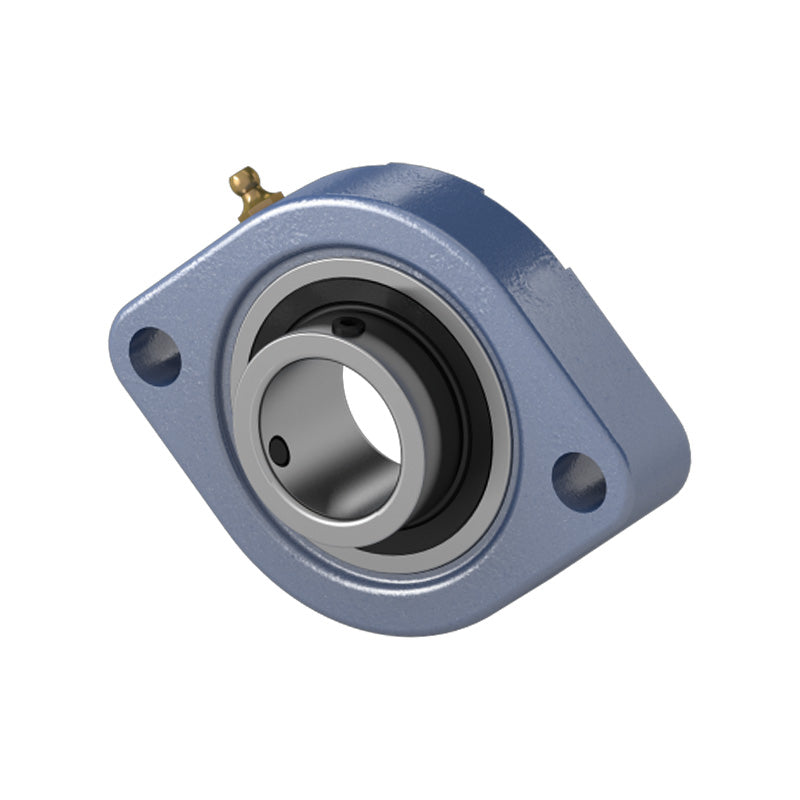

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations.
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
SBFW
Bolt Hole Centres:
76.2mm
Technical
d 7/8 inch
a 97mm
e 76.2mm
b 71mm
i 9.5mm
s 9mm
l 17.5mm
Bolt M8
z 29mm
B 27mm
n 7.5mm
Weight 0.5 kg
Dynamic load 1100 kgf
Static load 710 kgf
