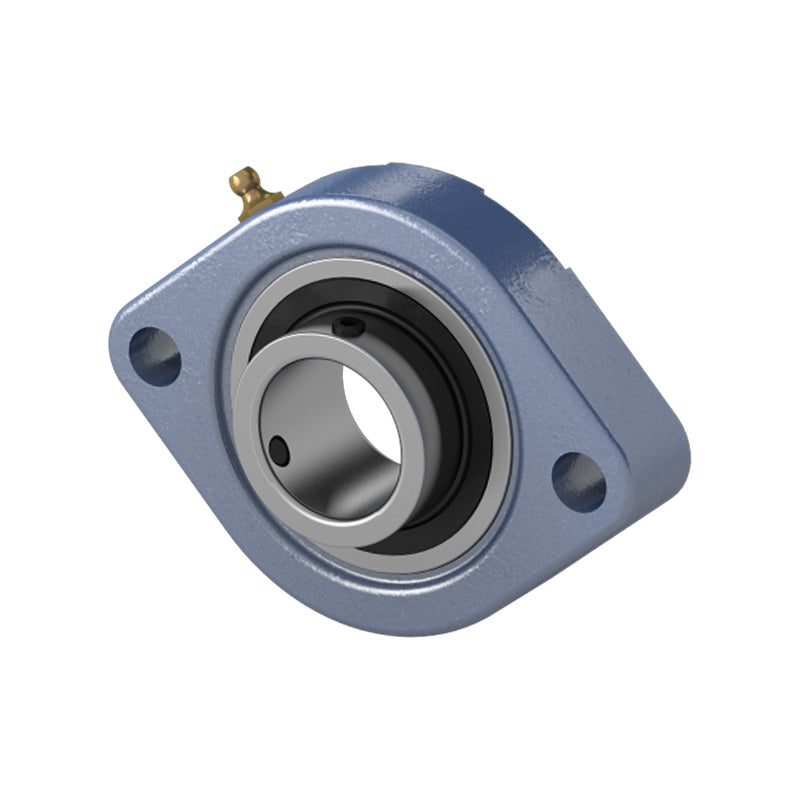

• SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
1 1

SKU: SBFW205-15

SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore

SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
$18.48 ex VAT
$18.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.38
4+ $11.68
9+ $11.54
19+ $11.41
49+ $11.27
99+ $11.13
499+ $10.43
999+ $10.29
1999+ $10.15
2999+ $10.01
4999+ $9.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations.
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Style:
SBFW
Bolt Hole Centres:
76.2mm
Technical
d 15/16 inch
a 97mm
e 76.2mm
b 71mm
i 9.5mm
s 9mm
l 17.5mm
Bolt M8
z 29mm
B 27mm
n 7.5mm
Weight 0.5 kg
Dynamic load 1100 kgf
Static load 710 kgf
