• SBFW206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
1 1

SKU: SBFW206

SBFW206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore

SBFW206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
$18.71 ex VAT
$18.71 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.53
4+ $11.82
9+ $11.68
19+ $11.54
49+ $11.40
99+ $11.26
499+ $10.56
999+ $10.42
1999+ $10.28
2999+ $10.13
4999+ $9.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

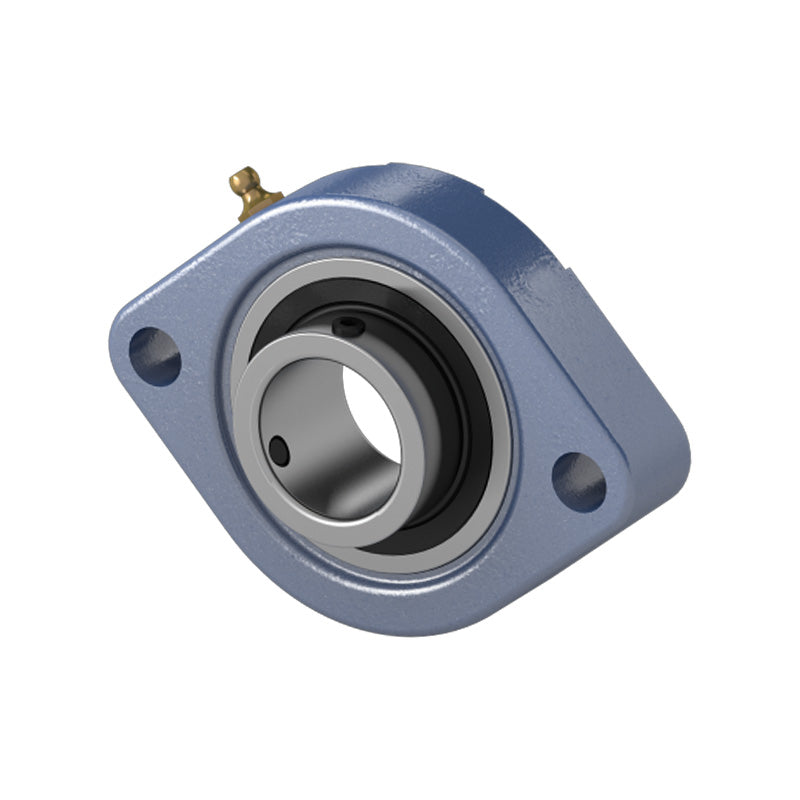

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations.
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
SBFW
Bolt Hole Centres:
90.5mm
Technical
d 30mm
a 112.5mm
e 90.5mm
b 84mm
i 11.5mm
s 11.5mm
l 20.5mm
Bolt M10
z 33.5mm
B 30mm
n 8mm
Weight 0.8 kg
Dynamic load 1520 kgf
Static load 1020 kgf
