• SBLF205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore Grub Screw Insert
1 1

SKU: SBLF.205-16

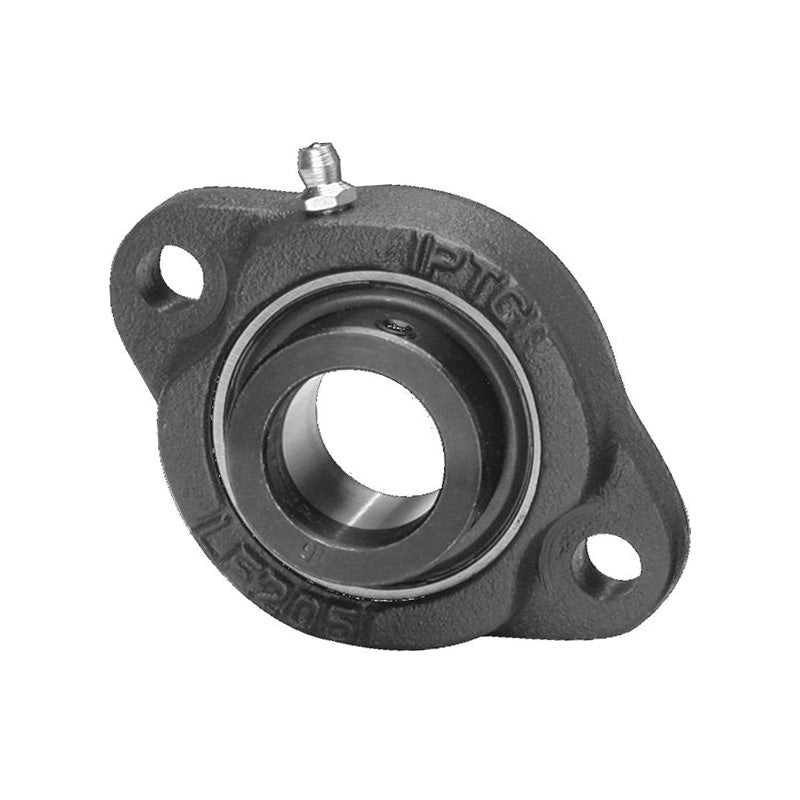

SBLF205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore Grub Screw Insert

SBLF205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore Grub Screw Insert
$14.93 ex VAT
$14.93 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.00
4+ $9.44
9+ $9.33
19+ $9.21
49+ $9.10
99+ $8.99
499+ $8.43
999+ $8.31
1999+ $8.20
2999+ $8.09
4999+ $7.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Style:
SBLF
Bolt Hole Centres:
76mm
Technical
d 1 inch
a 95mm
e 76mm
b 64mm
i 11mm
s 10mm
g 11mm
l 20mm
Bolt M8
z 30.5mm
n 7.5mm
Weight 0.5 kg
Dynamic load 1100 kgf
Static load 710 kgf
