• SBLF207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
1 1

SKU: SBLF.207-20

SBLF207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert

SBLF207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
$22.03 ex VAT
$22.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.76
4+ $13.93
9+ $13.76
19+ $13.60
49+ $13.43
99+ $13.27
499+ $12.44
999+ $12.27
1999+ $12.11
2999+ $11.94
4999+ $11.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

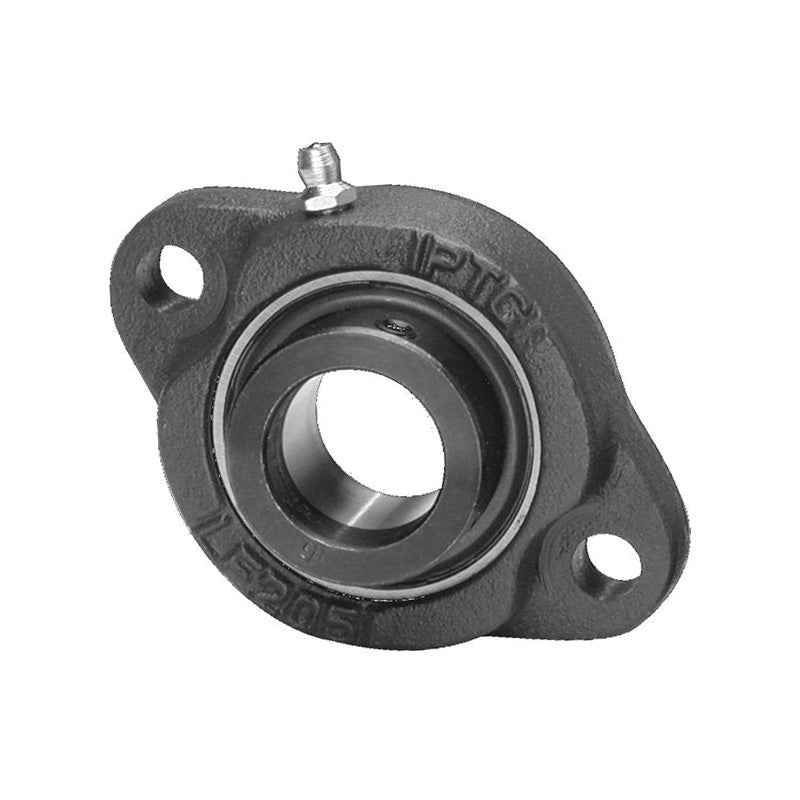

SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SBLF
Bolt Hole Centres:
100mm
Technical
d 1-1/4 inch
a 122mm
e 100mm
b 89mm
i 13mm
s 12mm
g 13mm
l 24mm
Bolt M10
z 36.5mm
n 8.5mm
Weight 0.9 kg
Dynamic load 2010 kgf
Static load 1390 kgf
