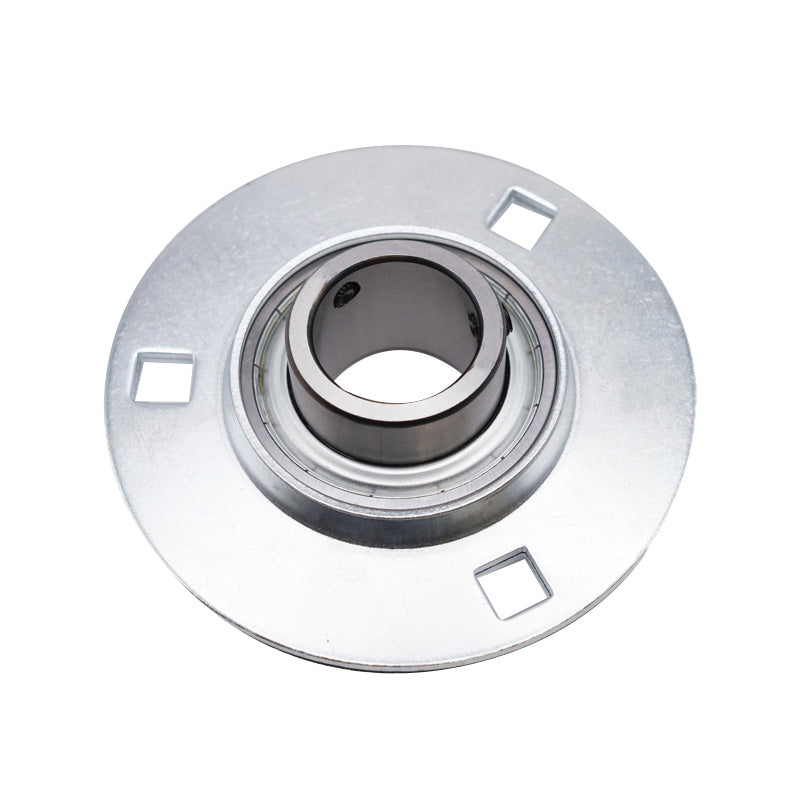

• SBPF204-12 Round 3 Bolt Pressed Steel Bearing Housing with 3/4 inch Insert
1 1

SKU: SBPF204-12.RND

SBPF204-12 Round 3 Bolt Pressed Steel Bearing Housing with 3/4 inch Insert

SBPF204-12 Round 3 Bolt Pressed Steel Bearing Housing with 3/4 inch Insert
$11.07 ex VAT
$11.07 ex VAT
Sale Sold out

Equivalent to: SLFE3/4

In stock

Price Break
3+ $7.42
4+ $7.00
9+ $6.92
19+ $6.83
49+ $6.75
99+ $6.67
499+ $6.25
999+ $6.17
1999+ $6.08
2999+ $6.00
4999+ $5.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
SBPF
Pitch Circle Diameter:
71.5mm
Technical
d 3/4 inch
a 90mm
e 71.5mm
m 16mm
s 9mm
t 4mm
f 56mm
B 25mm
n 7mm
Bolt M8
Weight 0.33 kg
Dynamic load 1000 N
Static load 630 N
