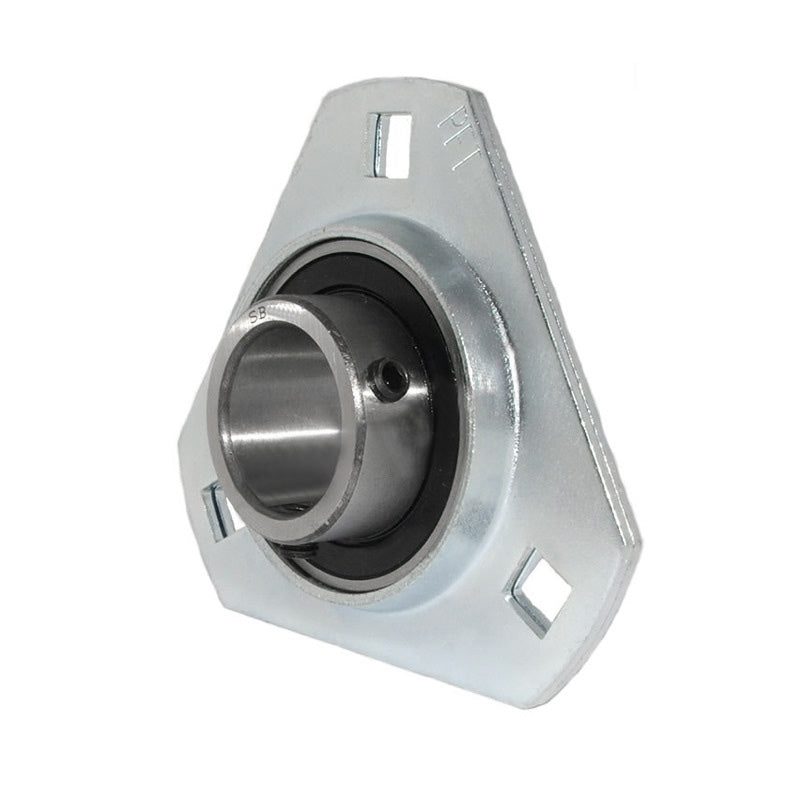

• SBPFT206-19 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/16 inch insert
1 1

SKU: SBPFT206-19.TRI

SBPFT206-19 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/16 inch insert

SBPFT206-19 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/16 inch insert
$16.53 ex VAT
$16.53 ex VAT
Sale Sold out

Equivalent to: SLFT1-3/16

In stock

Price Break
3+ $11.08
4+ $10.45
9+ $10.33
19+ $10.20
49+ $10.08
99+ $9.96
499+ $9.33
999+ $9.21
1999+ $9.08
2999+ $8.96
4999+ $8.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
SBPFT
Pitch Circle Diameter:
90.5mm
Technical
d 1-3/16 inch
a 113mm
e 90.5mm
w 40mm
m 18mm
s 11mm
t 5.2mm
f 71mm
B 30mm
n 8mm
Bolt 3/8 inch
Weight 0.55 kg
Dynamic load 1520 N
Static load 1020 N
