• SBPP206 Pressed Steel Pillow Block Housing with 30mm Insert
1 1

SKU: SBPP206.HMP

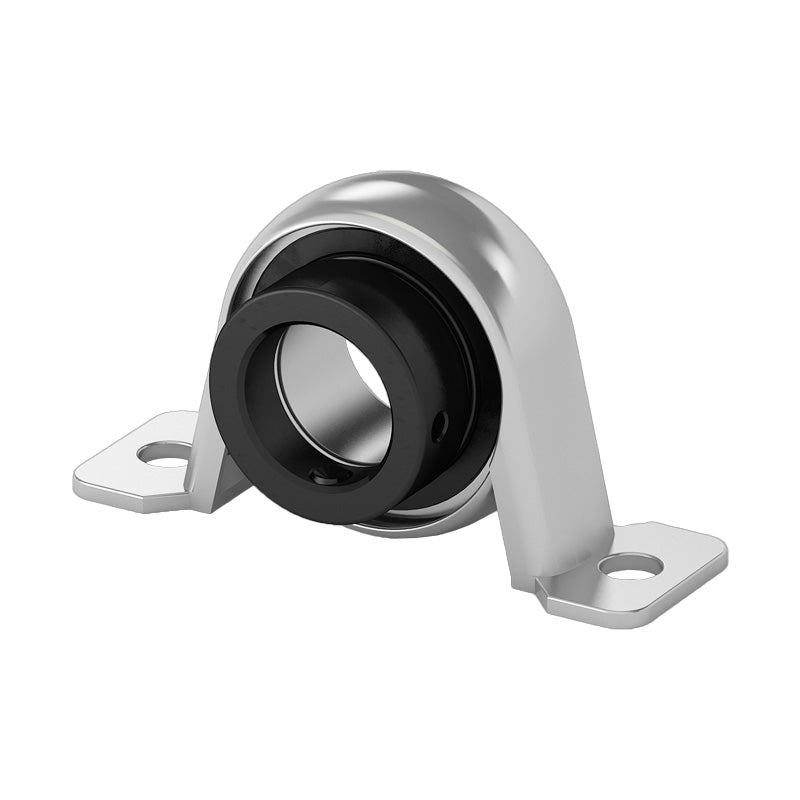

SBPP206 Pressed Steel Pillow Block Housing with 30mm Insert

SBPP206 Pressed Steel Pillow Block Housing with 30mm Insert
$16.09 ex VAT
$16.09 ex VAT
Sale Sold out

Equivalent to: LPB30

In stock

Price Break
3+ $10.78
4+ $10.17
9+ $10.05
19+ $9.93
49+ $9.81
99+ $9.69
499+ $9.08
999+ $8.96
1999+ $8.84
2999+ $8.72
4999+ $8.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
SBPP
Bolt Hole Centres:
95mm
Technical
d 30mm
h 33.3mm
L 117mm
e 95mm
b 38mm
s 11.5mm
g 4mm
w 66.3mm
B1 30mm
n 8mm
Bolt M10
Weight 0.42 kg
Dynamic load 1520 N
Static load 1020 N
