ContiTech SC14M1610X37 Synchrochain Timing Belt 37mm Width 1610mm Length 115 Teeth
SKU: SC14M1610X37

ContiTech SC14M1610X37 Synchrochain Timing Belt 37mm Width 1610mm Length 115 Teeth

$503.45 ex VAT
$503.45
ex VAT

Description

Standard Synchrochain Timing Belts: These timing belts are high-performance timing belts designed for extreme applications requiring exceptional strength and durability. They offer excellent resistance to chemicals, oils, UV rays, and ozone, making them suitable for harsh tropical climates. With a temperature range of -40°C to 80°C, these belts withstand reverse flexing and operate maintenance-free at speeds up to 40 m/s. Ultra-strong Aramid tensile members ensure high torque transmission at low speeds, while the precise tooth match prevents ratcheting. Compact and economical, the belt enables lightweight, low-noise drives that require no lubrication or re-tightening.
Benefits: Maintenance-free, withstands reverse flexing, highly resistant to various chemicals and oils

Technical

Number of Teeth = 115
Belt Length = 1610mm
Belt Width = 37mm

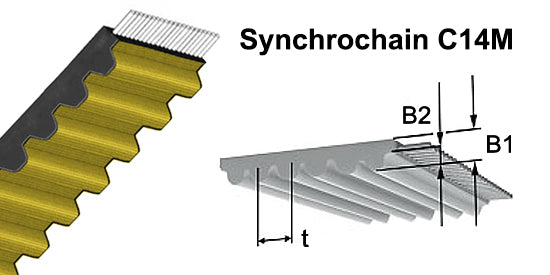

Tooth Pitch t = 14mm
Belt Depth B1 = 10mm
Belt Depth B2 = 6.1mm
Temperature Range = -40 to 80 Deg C
Dynamic Stressing Range = Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications = 6600 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) = 8800 N
Weight Kg = 0.465 kg
