SKU: SCH-16-SB-IKO

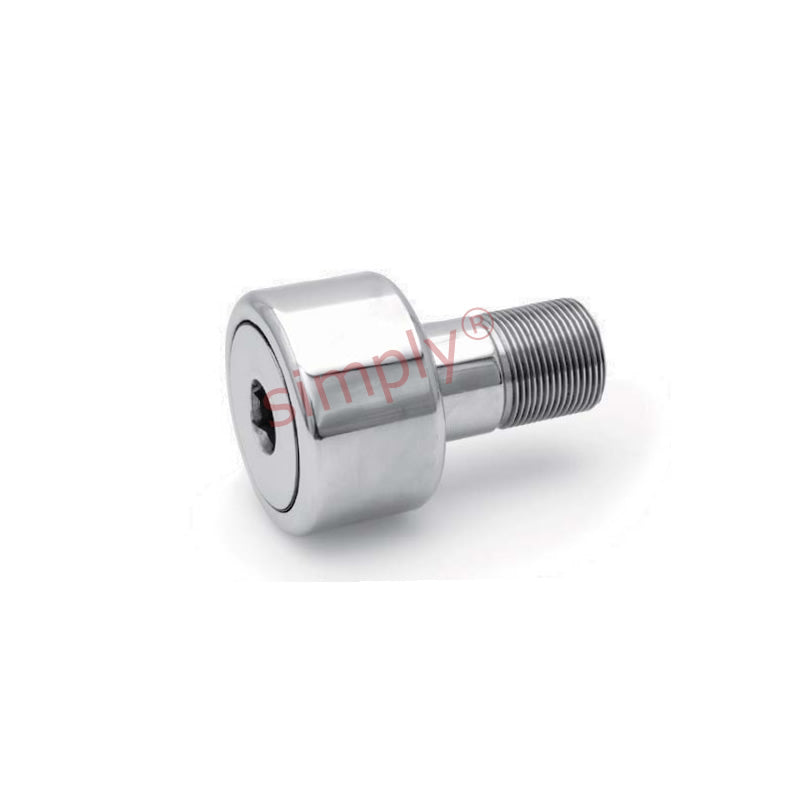

IKO SCH16SB Hex Head Heavy Duty Stainless Steel Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
IKO SCH16SB Hex Head Heavy Duty Stainless Steel Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Heavy Duty Stainless Steel Sealed Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, heavy duty, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.25 inch |
| D | 0.625 inch |
| E | 0.25 inch |
| Thread class 2A F | 1/4-28 UNF |
| J | 1/8 inch |
| Min boss diameter | 19/64 inch |
| Recommended torque | 12 lbf-in |
| Basic dynamic rating | 1106 lbs |
| Max static capacity | 544 lbs |
