SKU: SCH1.7/16-RHP

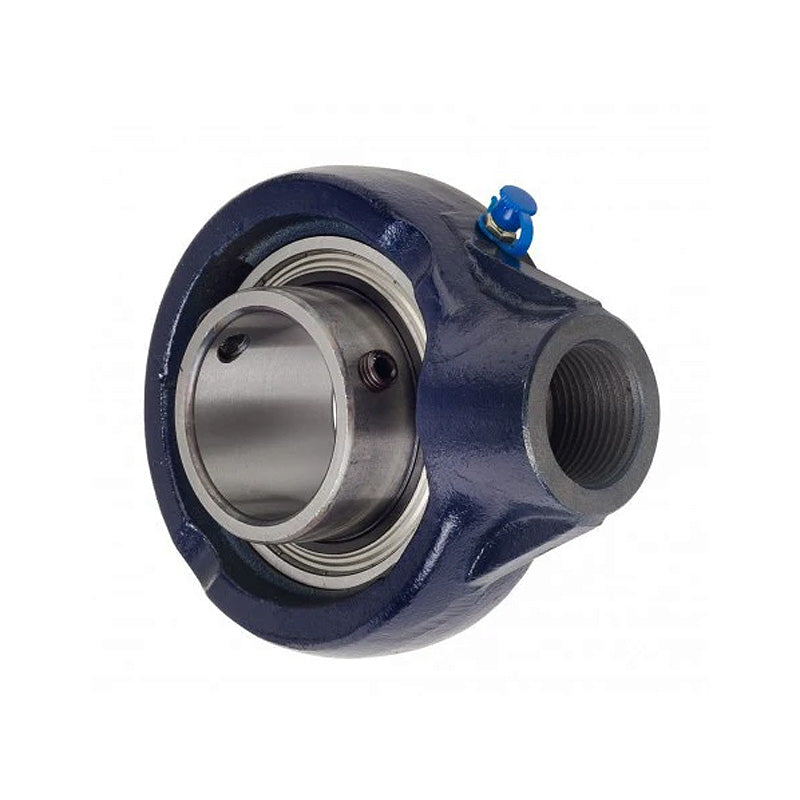

RHP SCH1-7/16 Metric Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
RHP SCH1-7/16 Metric Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 107mm
- Style:
- SCH
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| G1 | 0.748 inch |
| L | 4.213 inch |
| H | 5.02 inch |
| H1 | 2.874 inch |
| Threads | M24X3 Metric |
| A | 1.555 inch |
| A1 | 1.094 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
