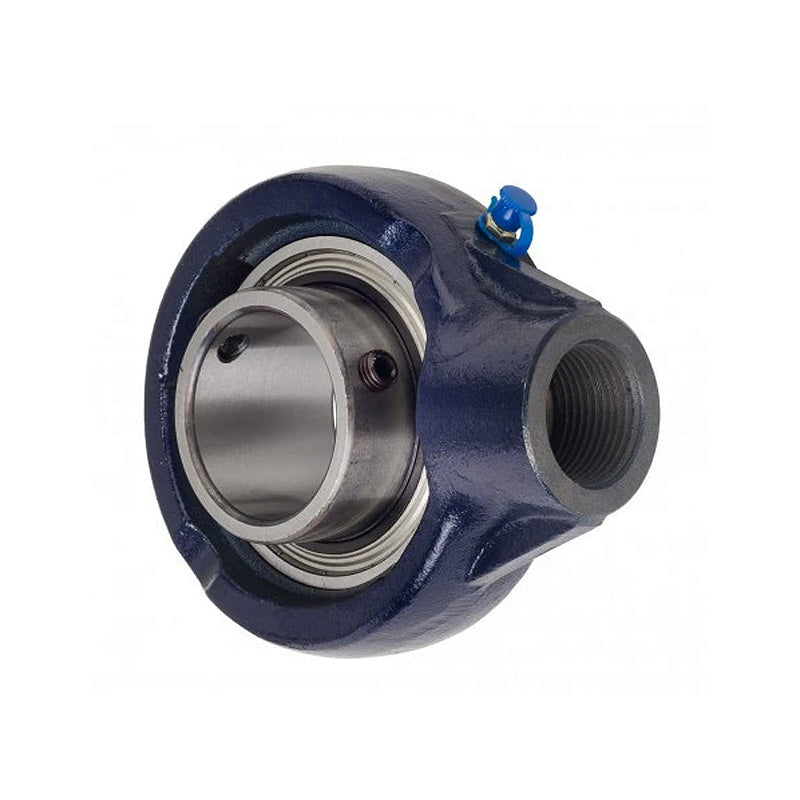

• RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
1 1

SKU: SCH2-RHP

RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter

RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
$227.63 ex VAT
$227.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $152.48
20+ $143.91
30+ $142.20
40+ $140.48
50+ $138.77
75+ $137.06
100+ $128.49
200+ $126.78
250+ $125.07
500+ $123.35
1000+ $119.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
121mm
Style:
SCH
Technical
Bore 2 inch
G1 0.827 inch
L 4.764 inch
H 5.669 inch
H1 3.252 inch
Threads M24X3 Metric
A 1.87 inch
A1 1.094 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
