SKU: SCH20-RHP

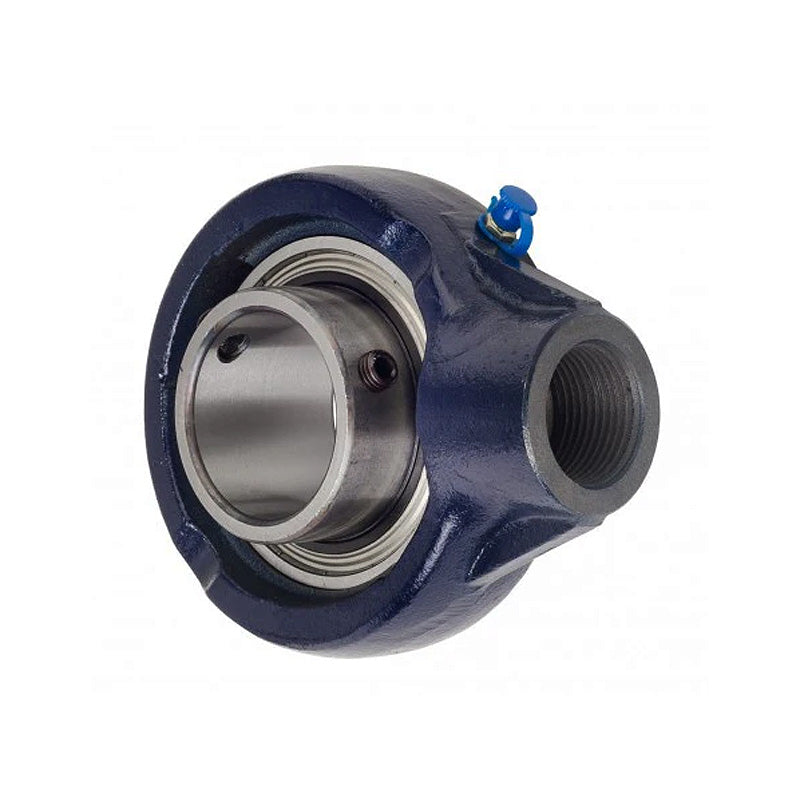

RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
Regular price
$73.69
ex VAT
Regular price
Sale price
$73.69
ex VAT
In stock
Price Break
10+
$49.36
20+
$46.59
30+
$46.03
40+
$45.48
50+
$44.92
75+
$44.37
100+
$41.60
200+
$41.04
250+
$40.49
500+
$39.93
1000+
$38.82
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 67mm
- Style:
- SCH
Technical
Technical
| Bore | 20mm |
|---|---|
| G1 | 19mm |
| L | 67mm |
| H | 91.6mm |
| H1 | 57.2mm |
| Threads | M16X2 Metric |
| A | 34mm |
| A1 | 18.26mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
