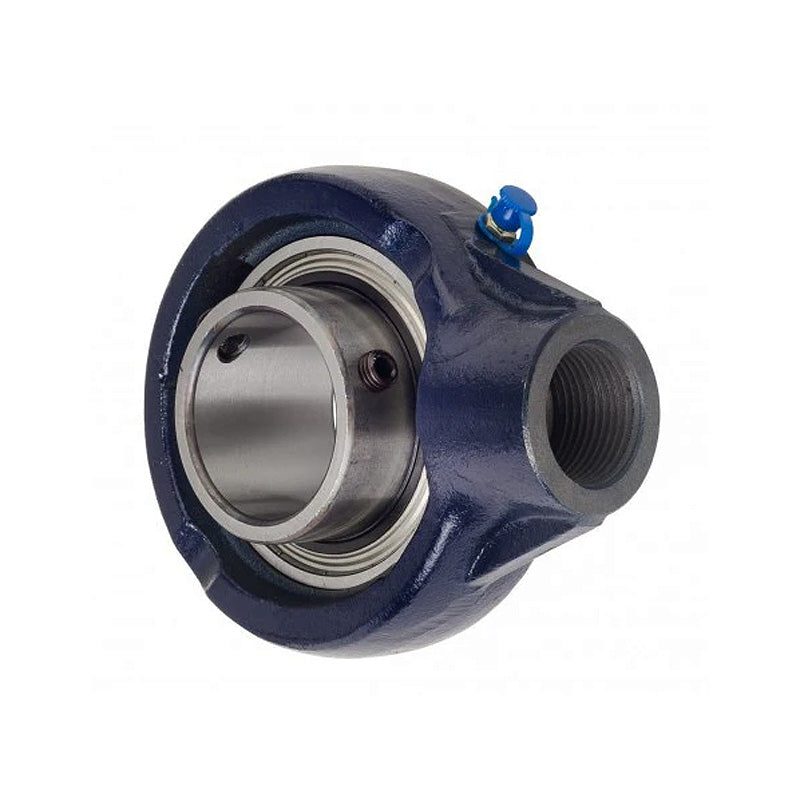

• RHP SCH25 Metric Thread Cast Iron Hanger Bearing Unit and 25mm Bore Insert 89mm Outside Diameter
1 1

SKU: SCH25-RHP

RHP SCH25 Metric Thread Cast Iron Hanger Bearing Unit and 25mm Bore Insert 89mm Outside Diameter

RHP SCH25 Metric Thread Cast Iron Hanger Bearing Unit and 25mm Bore Insert 89mm Outside Diameter
$79.84 ex VAT
$79.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $53.48
20+ $50.47
30+ $49.87
40+ $49.27
50+ $48.67
75+ $48.07
100+ $45.07
200+ $44.47
250+ $43.86
500+ $43.26
1000+ $42.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Outside Diameter:
89mm
Style:
SCH
Technical
Bore 25mm
G1 16mm
L 89mm
H 107.5mm
H1 61.9mm
Threads M20X2.5 Metric
A 33.5mm
A1 22.22mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
