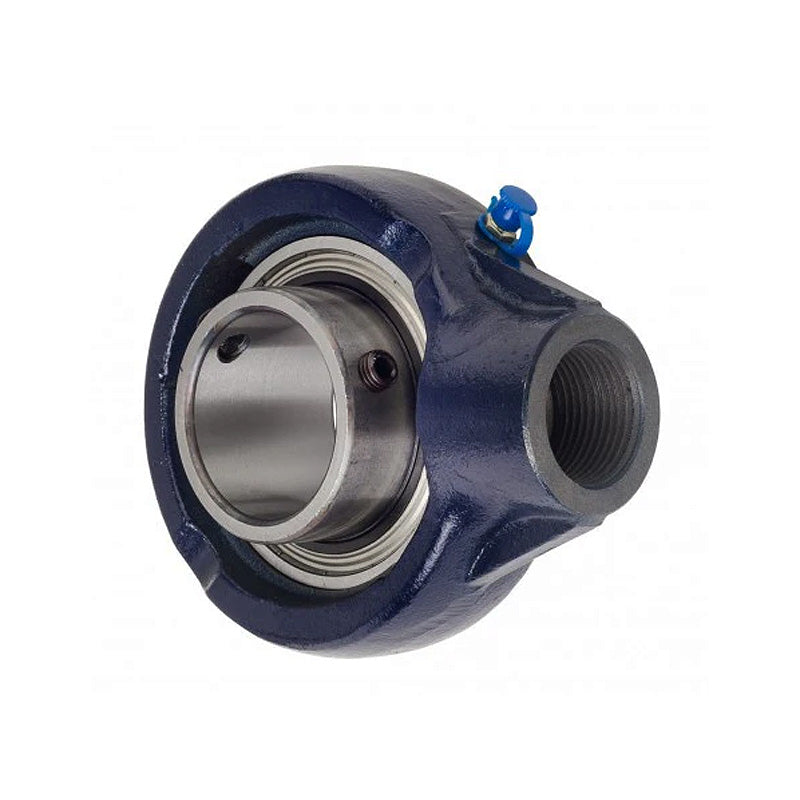

• RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
1 1

SKU: SCH40-RHP

RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter

RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
$116.38 ex VAT
$116.38 ex VAT
Sale Sold out

In stock

Price Break
10+ $77.95
20+ $73.57
30+ $72.70
40+ $71.82
50+ $70.95
75+ $70.07
100+ $65.69
200+ $64.81
250+ $63.94
500+ $63.06
1000+ $61.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Outside Diameter:
107mm
Style:
SCH
Technical
Bore 40mm
G1 19mm
L 107mm
H 127.5mm
H1 73mm
Threads M24X3 Metric
A 39.5mm
A1 27.79mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
