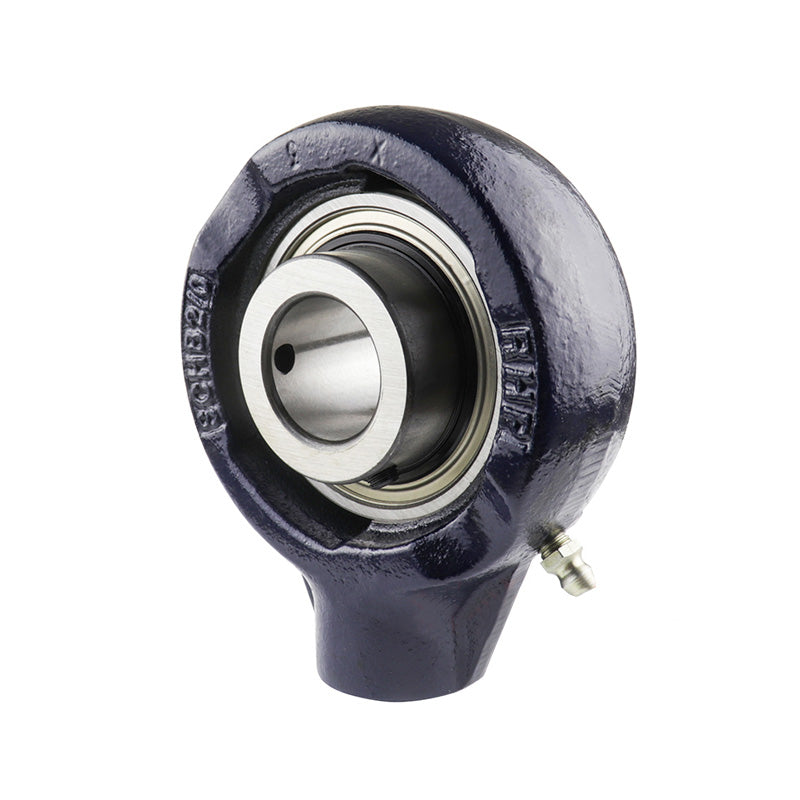

• RHP SCHB1-3/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
1 1

SKU: SCHB1.3/8-RHP

RHP SCHB1-3/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter

RHP SCHB1-3/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
$106.96 ex VAT
$106.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $71.64
20+ $67.62
30+ $66.81
40+ $66.01
50+ $65.20
75+ $64.40
100+ $60.37
200+ $59.57
250+ $58.76
500+ $57.96
1000+ $56.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
97mm
Style:
SCHB
Technical
Bore 1-3/8 inch
G1 0.748 inch
L 3.819 inch
H 4.685 inch
H1 2.748 inch
Threads 3/4 BSP
A 1.555 inch
A1 1 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
