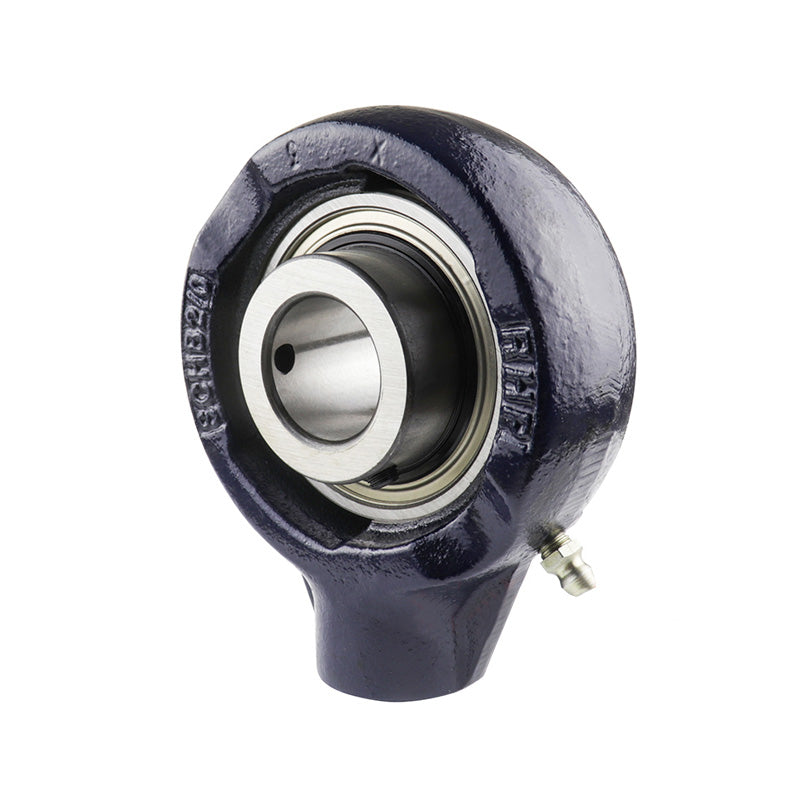

• RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
1 1

SKU: SCHB1.7/16-RHP

RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter

RHP SCHB1-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter
$106.96 ex VAT
$106.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $71.64
20+ $67.62
30+ $66.81
40+ $66.01
50+ $65.20
75+ $64.40
100+ $60.37
200+ $59.57
250+ $58.76
500+ $57.96
1000+ $56.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
107mm
Style:
SCHB
Technical
Bore 1-7/16 inch
G1 0.748 inch
L 4.213 inch
H 5.02 inch
H1 2.874 inch
Threads 3/4 BSP
A 1.555 inch
A1 1.094 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
