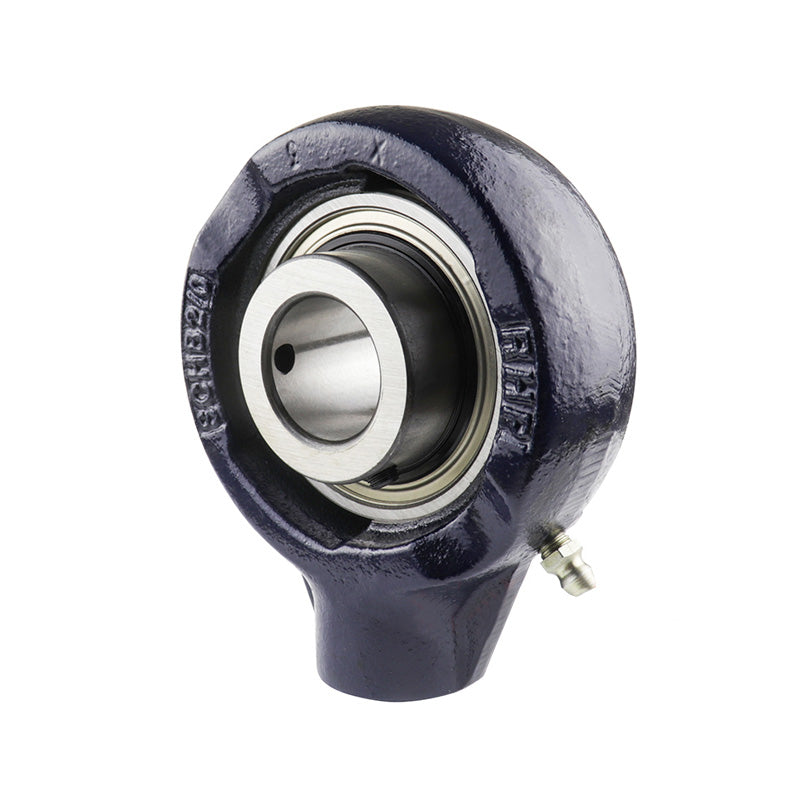

• RHP SCHB1 BSP Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
1 1

SKU: SCHB1-RHP

RHP SCHB1 BSP Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter

RHP SCHB1 BSP Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
$84.82 ex VAT
$84.82 ex VAT
Sale Sold out

In stock

Price Break
10+ $56.82
20+ $53.63
30+ $52.99
40+ $52.35
50+ $51.71
75+ $51.07
100+ $47.88
200+ $47.24
250+ $46.60
500+ $45.97
1000+ $44.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
89mm
Style:
SCHB
Technical
Bore 1 inch
G1 0.63 inch
L 3.504 inch
H 4.232 inch
H1 2.437 inch
Threads 1/2 BSP
A 1.319 inch
A1 0.875 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
