SKU: SCHB2.1/2-RHP

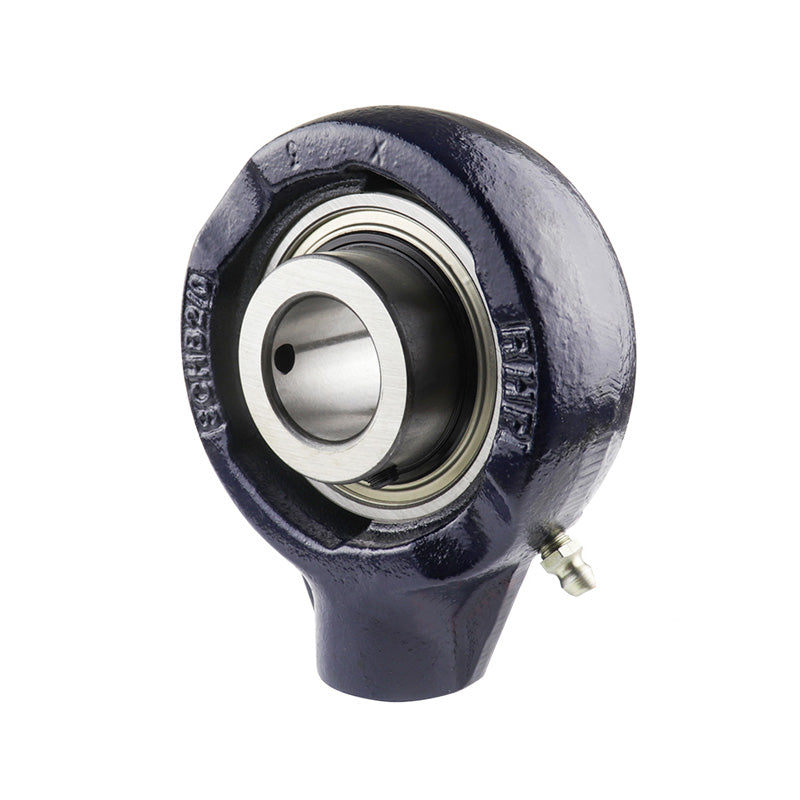

RHP SCHB2-1/2 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/2 inch Bore Insert 143mm Outside Diameter
RHP SCHB2-1/2 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/2 inch Bore Insert 143mm Outside Diameter
Regular price
$227.63
ex VAT
Regular price
Sale price
$227.63
ex VAT
In stock
Price Break
10+
$152.48
20+
$143.91
30+
$142.20
40+
$140.48
50+
$138.77
75+
$137.06
100+
$128.49
200+
$126.78
250+
$125.07
500+
$123.35
1000+
$119.93
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 143mm
- Style:
- SCHB
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| G1 | 1.142 inch |
| L | 5.63 inch |
| H | 6.831 inch |
| H1 | 4 inch |
| Threads | 1-1/4 BSP |
| A | 2.303 inch |
| A1 | 1.218 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2660 rpm |
| Weight | 3.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a> |
| Casting group | 4/65 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
