SKU: SCHB2.3/4-RHP

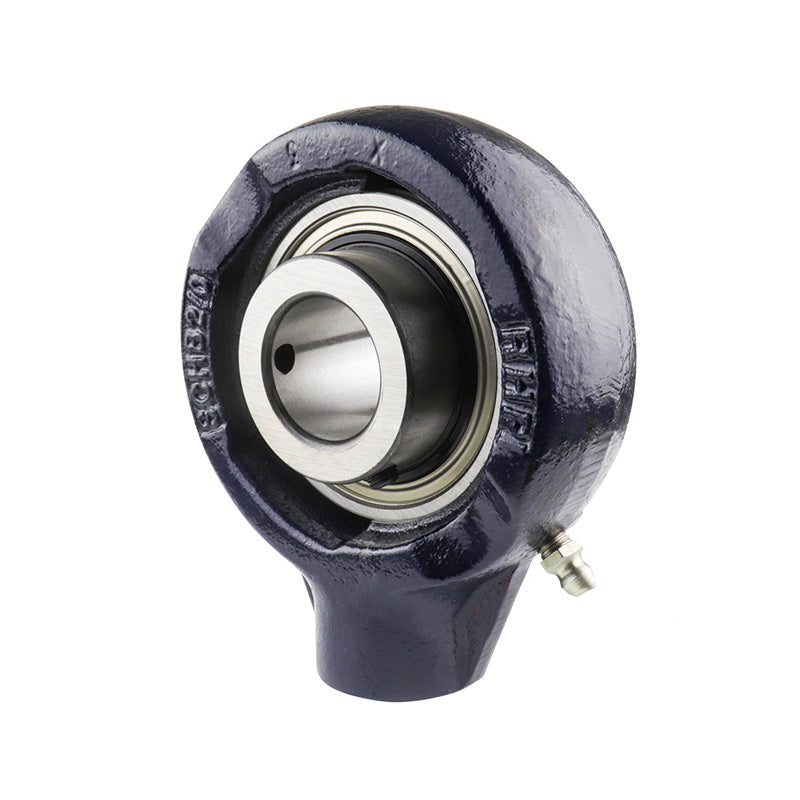

RHP SCHB2-3/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-3/4 inch Bore Insert 165mm Outside Diameter
RHP SCHB2-3/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-3/4 inch Bore Insert 165mm Outside Diameter
Regular price
$334.06
ex VAT
Regular price
Sale price
$334.06
ex VAT
In stock
Price Break
10+
$223.76
20+
$211.19
30+
$208.68
40+
$206.17
50+
$203.65
75+
$201.14
100+
$188.57
200+
$186.05
250+
$183.54
500+
$181.02
1000+
$175.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 165mm
- Style:
- SCHB
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| G1 | 1.26 inch |
| L | 6.496 inch |
| H | 7.898 inch |
| H1 | 4.626 inch |
| Threads | 1-1/2 BSP |
| A | 2.756 inch |
| A1 | 1.376 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
