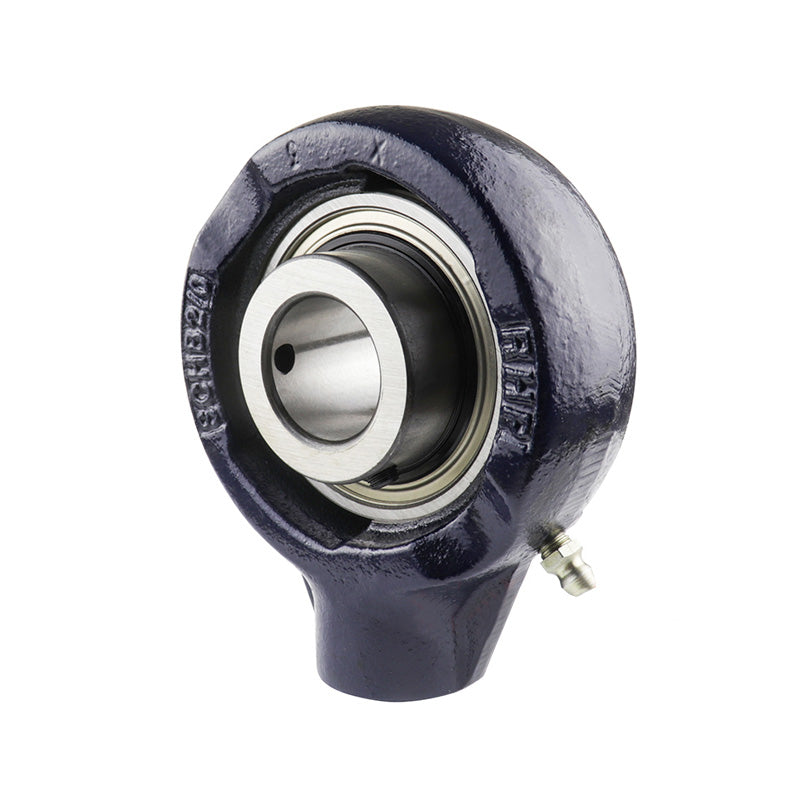

• RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
1 1

SKU: SCHB20-RHP

RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter

RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
$73.69 ex VAT
$73.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.36
20+ $46.59
30+ $46.03
40+ $45.48
50+ $44.92
75+ $44.37
100+ $41.60
200+ $41.04
250+ $40.49
500+ $39.93
1000+ $38.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Outside Diameter:
67mm
Style:
SCHB
Technical
Bore 20mm
G1 19mm
L 67mm
H 91.6mm
H1 57.2mm
Threads 1/2 BSP
A 34mm
A1 18.26mm
B 30.96mm
s 12.75mm
d1 28.5mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a>
Casting group 0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
