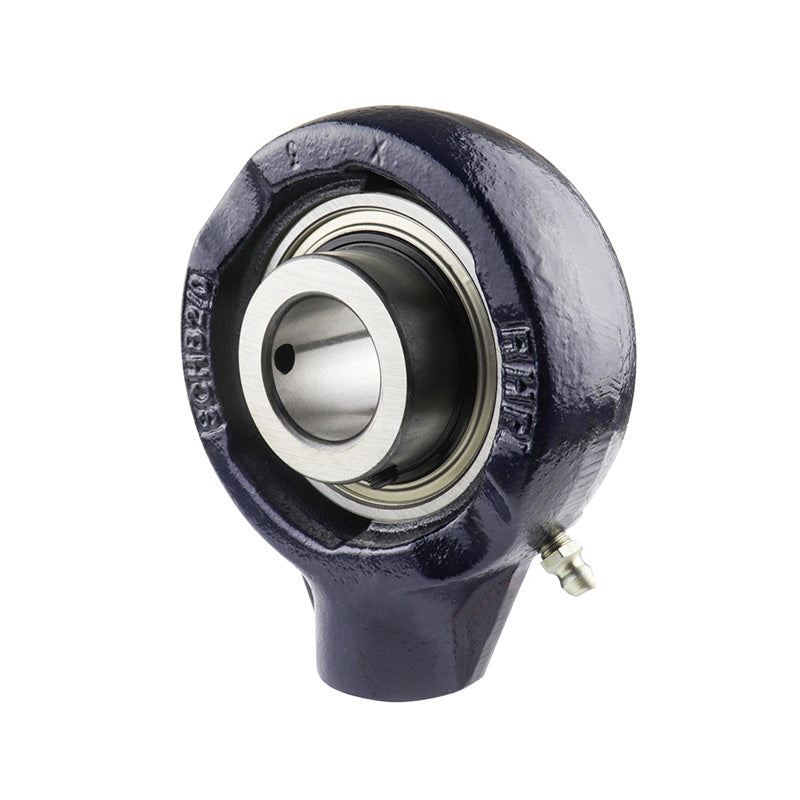

• RHP SCHB3/4 BSP Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter
1 1

SKU: SCHB3/4-RHP

RHP SCHB3/4 BSP Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter

RHP SCHB3/4 BSP Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter
$78.18 ex VAT
$78.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.36
20+ $49.42
30+ $48.83
40+ $48.25
50+ $47.66
75+ $47.07
100+ $44.13
200+ $43.54
250+ $42.95
500+ $42.36
1000+ $41.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
67mm
Style:
SCHB
Technical
Bore 3/4 inch
G1 0.748 inch
L 2.638 inch
H 3.606 inch
H1 2.252 inch
Threads 1/2 BSP
A 1.339 inch
A1 0.719 inch
B 1.219 inch
s 0.502 inch
d1 1.122 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
