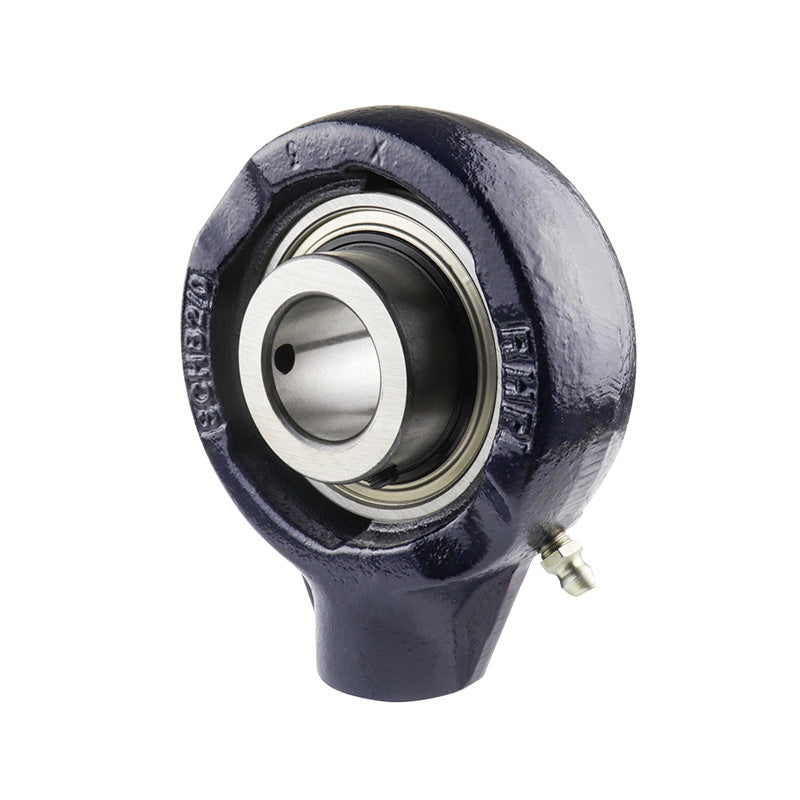

• RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
1 1

SKU: SCHB3-RHP

RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter

RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
$389.65 ex VAT
$389.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $261.01
20+ $246.34
30+ $243.41
40+ $240.48
50+ $237.54
75+ $234.61
100+ $219.95
200+ $217.02
250+ $214.08
500+ $211.15
1000+ $205.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
174.5mm
Style:
SCHB
Technical
Bore 3 inch
G1 1.26 inch
L 6.87 inch
H 8.327 inch
H1 4.874 inch
Threads 1-1/2 BSP
A 2.815 inch
A1 1.626 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 8.1 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
