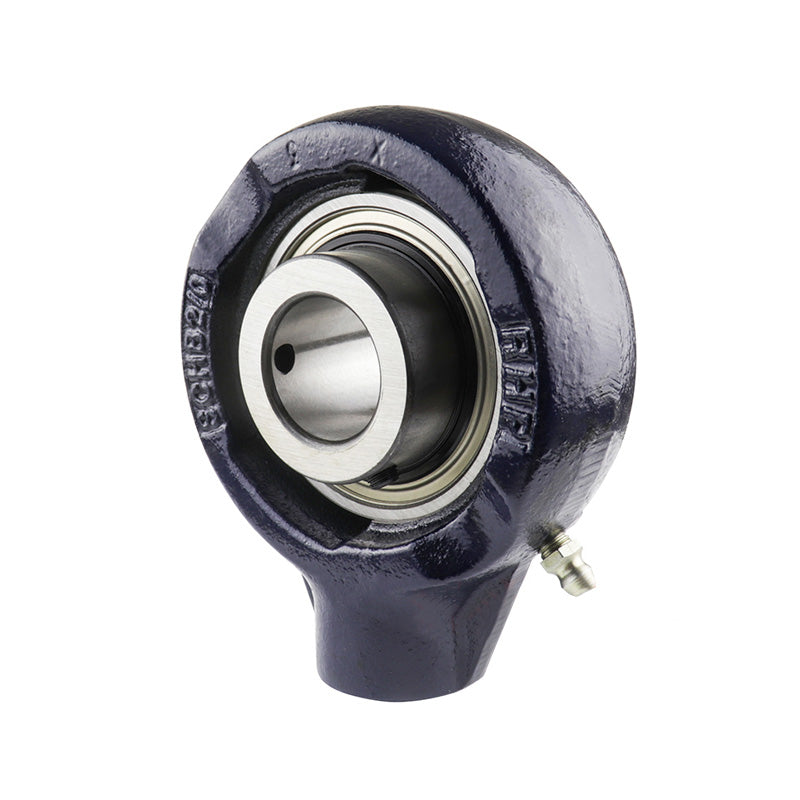

• RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
1 1

SKU: SCHB35-RHP

RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter

RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
$100.85 ex VAT
$100.85 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.55
20+ $63.76
30+ $63.00
40+ $62.24
50+ $61.48
75+ $60.72
100+ $56.92
200+ $56.17
250+ $55.41
500+ $54.65
1000+ $53.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Outside Diameter:
97mm
Style:
SCHB
Technical
Bore 35mm
G1 19mm
L 97mm
H 119mm
H1 69.8mm
Threads 3/4 BSP
A 39.5mm
A1 25.4mm
B 42.88mm
s 17.53mm
d1 46.69mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
