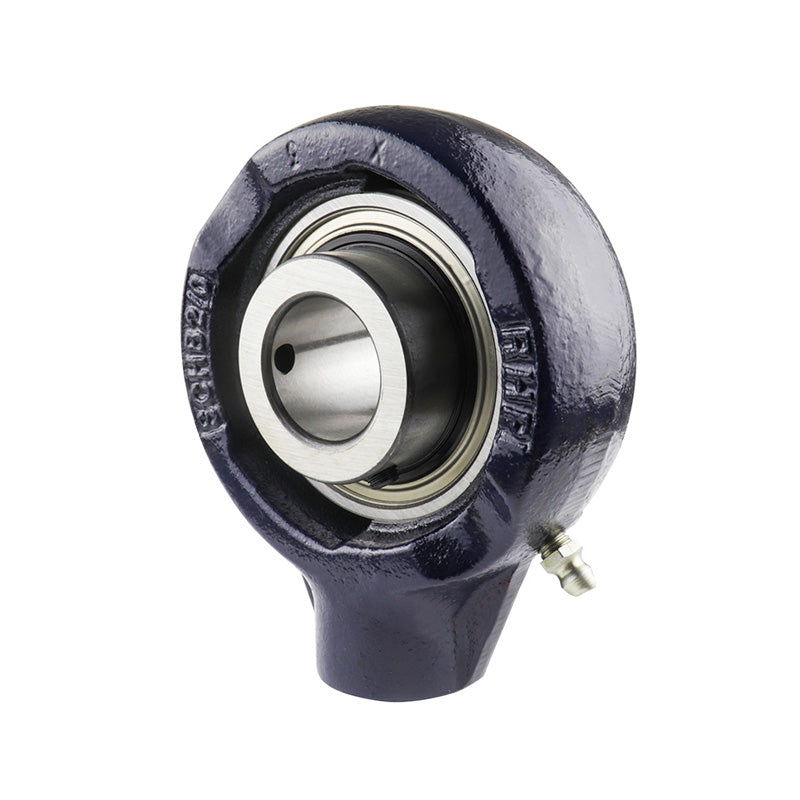

• RHP SCHB50 BSP Thread Cast Iron Hanger Bearing Unit and 50mm Bore Insert 121mm Outside Diameter
1 1

SKU: SCHB50-RHP

RHP SCHB50 BSP Thread Cast Iron Hanger Bearing Unit and 50mm Bore Insert 121mm Outside Diameter

RHP SCHB50 BSP Thread Cast Iron Hanger Bearing Unit and 50mm Bore Insert 121mm Outside Diameter
$146.00 ex VAT
$146.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $97.80
20+ $92.30
30+ $91.20
40+ $90.10
50+ $89.00
75+ $87.91
100+ $82.41
200+ $81.31
250+ $80.21
500+ $79.12
1000+ $76.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Outside Diameter:
121mm
Style:
SCHB
Technical
Bore 50mm
G1 21mm
L 121mm
H 144mm
H1 82.6mm
Threads 1 BSP
A 47.5mm
A1 27.79mm
B 51.59mm
s 19.1mm
d1 62.2mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
